Components

	FCR7350B CLIFF Electronic Components Ltd	x 2
	FCR7350R CLIFF Electronic Components Ltd	x 2

Tools, APP Software Used etc.

fusion360

Description

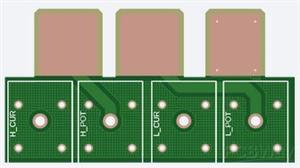

Kelvin wires adapter for ZOYI ZT-DQ01 and ZT-DQ02

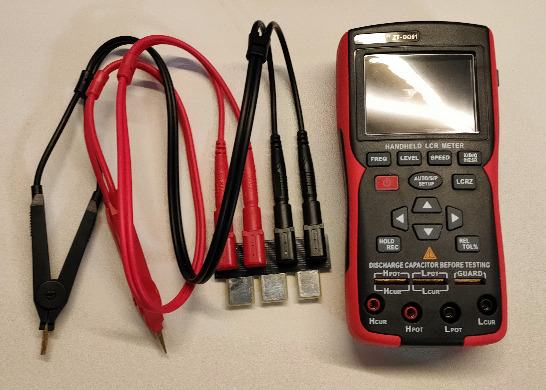

This is a project of a simple adapter for ZOYI ZT-DQ0x Kelvin wires, which lets you use the slot connector for them instead of banana jacks. This also eliminates the need to remember to insert the insulating plate into the slot connector when using 4-wire clamps.

Recommend using a thin PCB, like 1.0mm.

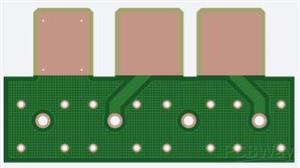

NOTICE: You may want to solder the connectors on the bottom side of the board (they are marked at the top side). Lpot and Lcur are swapped in respect to the marking of the banana jacks on the meter, but this was intentional, as I aimed for the shortest possible and equal lengths of the current tracks (Hcur and Lcur).

Download Gerbers

Oct 16,2025

450 views

Kelvin wires adapter for ZOYI ZT-DQ01 and ZT-DQ02

This is an adapter for Kelvin wires that eliminates the need for the use of the insulating plate (and banana jacks).

450

Published: Oct 16,2025

Standard PCB

Download Gerber file 6
