Description

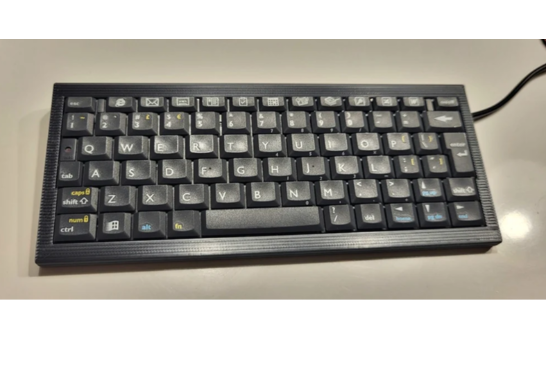

Jornada keyboard USB interface
The assumption was to build a Jornada-like palmtop around Jornadas leftover keyboard. Since this keyboard has no own interface board that could be used to connect to Raspbeery Pi, Radxa Zero or similar SBC I had to build a PCB that allows it.
A solution for use Jornada's keyboard was initially created for the project described here https://www.thingiverse.com/thing:6938611
This finally ended up with this project https://www.thingiverse.com/thing:6966529
Code
Arduino Code
https://github.com/38911-BASIC-BYTES-FREE/USB-Jornada-keyboard-mainboard/tree/main/Jornada-Keyboard-v.3-Code
Schematic and Layout
PCB and BOM
https://github.com/38911-BASIC-BYTES-FREE/USB-Jornada-keyboard-mainboard/tree/main/Jornada_keyboard_USB%20v.3
CAD-Custom parts and enclosures
Enclosure, keyboard replacement, build info
https://www.thingiverse.com/thing:6966529
Apr 19,2025
391 views
Jornada keyboard USB interface
Jornada keyboard USB interface that allows to connect and use Jornada's keyboard as regular USB HID keyboard.
