Greenhouse Automation Controller

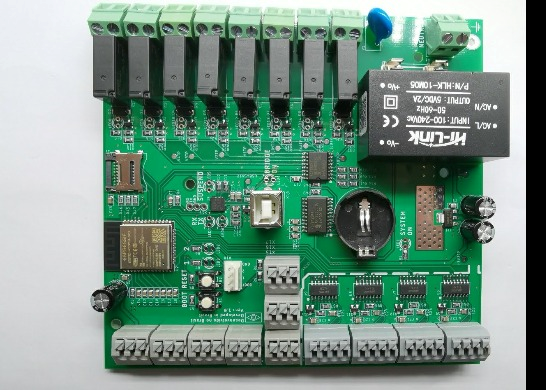

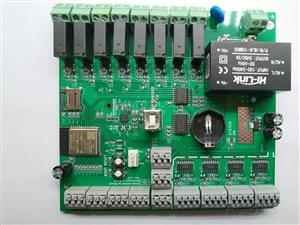

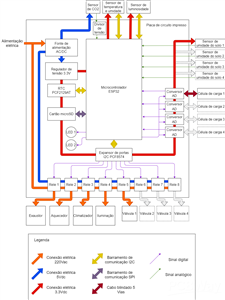

This project consists of a control board designed for the automated management of greenhouses. It is capable of controlling lighting, ventilation, humidification, and heating, while also collecting and storing data from various sensors.
The main features are:
- 8 relay outputs
- 7 analog/digital inputs (3.3V)
- 4 load cell inputs
- Integrated AC/DC power supply
- RTC PCF2129
- SD card support
- Built-in USB-to-UART converter

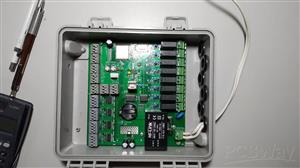

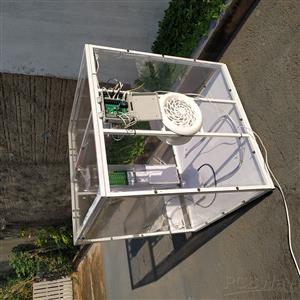

I originally developed this board as my capstone project in 2020, when I earned my degree in Electrical Engineering. I also maintain complete documentation covering the entire development process.

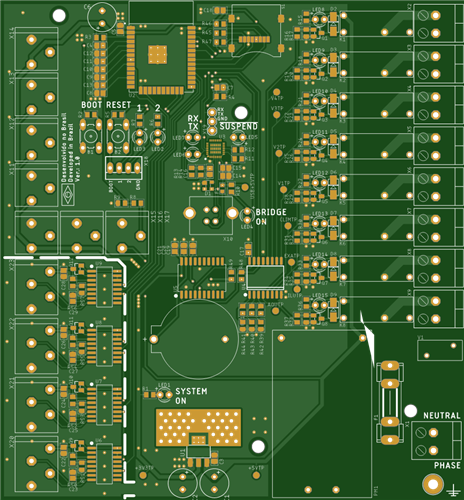

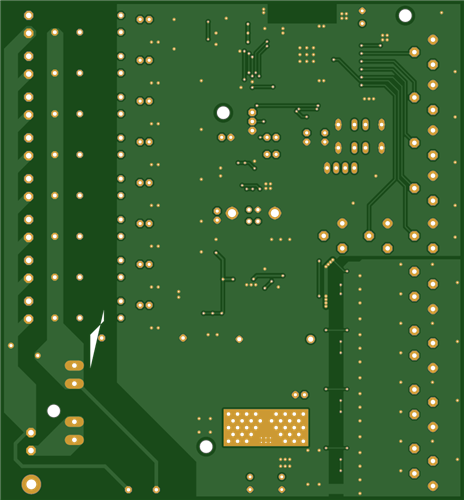

Schematic and Layout
Schematic
TCC_Schematic.pdf
Full Capstone project
AUTOMAÇÃO APLICADA A BOTÂNICA - MINI ESTUFA AUTOMATIZADA PARA FINS DE PESQUISA.pdf
Sep 10,2025
686 views
Greenhouse Automation Controller
This board was designed for greenhouse automation. It has relay outputs, analog/digital inputs, and load cell inputs.
