3557-2Keystone Electronics
|
x 2 |
|
|
EasyEDA Pro |
Fuse Adapter v1.3

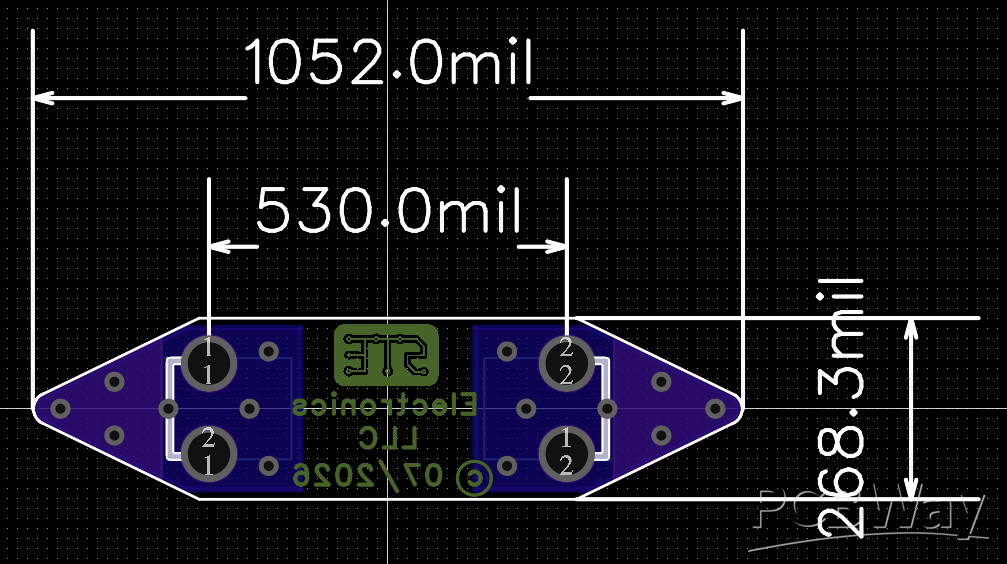

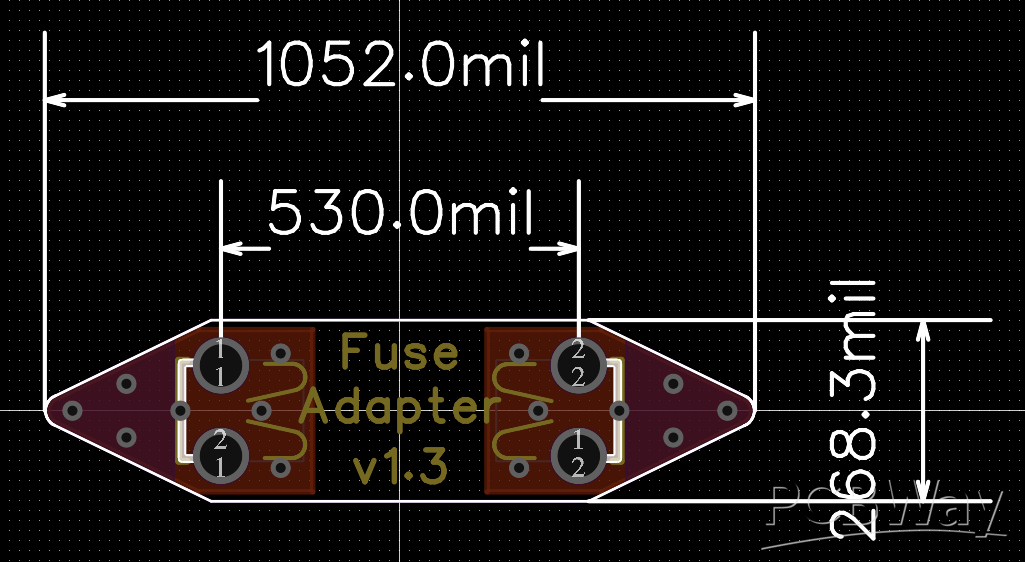

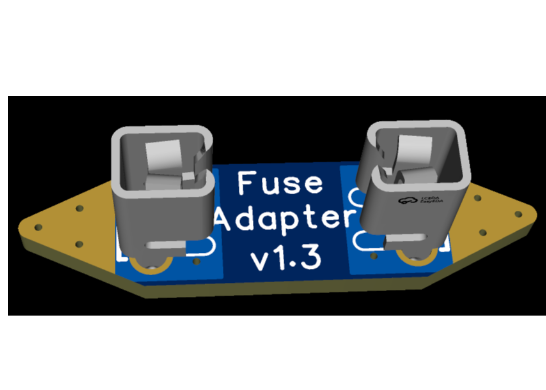

This is a modification of Fuse Adapter v1.2 and makes the distance between the Keystone 3557 fuse holders wider to allow for lower profile fuses to be used.
*UNFORTUNATELY* the previous rev was done in another software program so I had to make this one from scratch. I have also not had these fabbed so there may be errors I haven't noticed! PLEASE LET ME KNOW IF YOU FIND ANYTHING WRONG.
Again, like the previous rev, USE 2oz COPPER and ask the fab house to plate the edges where the copper is exposed on top/bottom to help ensure good contact when installed.
This rev is due to a push from John, who did some testing with v1.2 and requested this change, so I hope it works, John!
Fuse Adapter v1.3
