Drooper - a drum machine for looper pedals
A drum machine based on Raspberry Pi Pico, played by capacitive touch, and designed to output to a looper pedal.

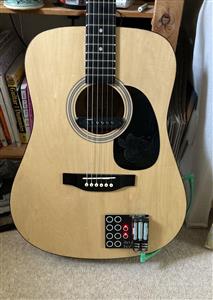

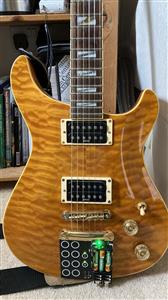

If you have ever been frustrated that your guitar with magnetic pickups can't do that KT Tunstall "bashing on the guitar body percussion" trick, this one's for you - a drum machine with guitar body bashing noises built in.
Updated 15th August 2025 to tweak the LPF which was stopping the design work correctly with a Ditto Looper 2 pedal.
Updated 29th March 2026 to correct a lingering cap touch problem, the design now requires 2 identical PCBs separated by spacers, which can be downloaded and 3D printed, 5 spacers per PCB.
Drooper - a drum machine for looper pedals
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
