Tools, APP Software Used etc.
|
KiCad 9.0 |
|
|
MPLAB X IDEMicrochip Technology
|
Description
DSP Terminal Unit for RTTY
The project is a terminal unit or modem for amateur radio teletype. It largely emulates an analog terminal unit but uses DSP biquad filters instead of op amp based filters. The tone generation is done with Direct Digital Synthesis. The unit keys a 60 mA loop and detects mark and space on that same loop.
Jul 10,2025
691 views

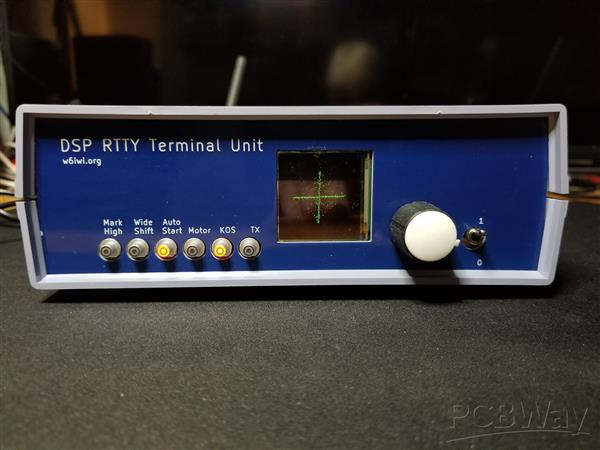

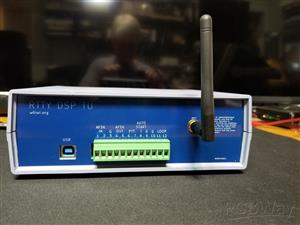

DSP Terminal Unit for RTTY

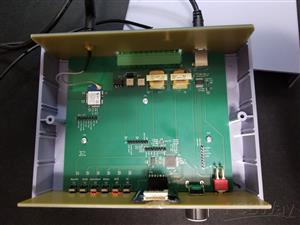

4 Layers PCB 132.3 x 159 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
Terminal Unit or modem for "heavy metal" radioteletype. For details, see https://w6iwi.org/rtty/DspTU3/ .
691
1
0
Published: Jul 10,2025
Standard PCB
Download Gerber file 5
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
