Description

Commodore Amiga Joystick Breakbord DB9

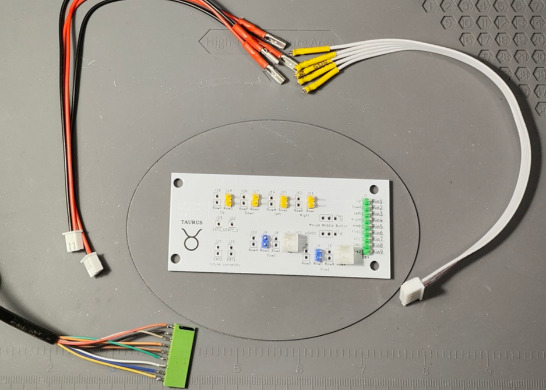

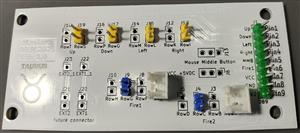

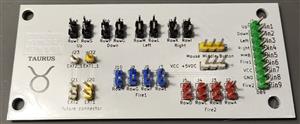

I was in need for PCB board for Commodore Amiga DB9 Joystick, so I created this simple design to just plug and play switches, cables and controller to one nice Circuit Board. Works very well specific project. Test went well. No problems.

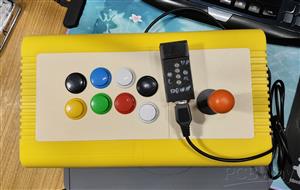

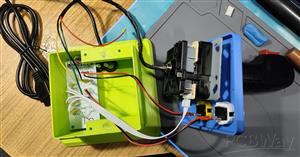

Made two types, one in Arcade Style controller and other more in Flight Stick Type :

https://youtube.com/shorts/GnX1kJmaudw?feature=share

https://youtube.com/shorts/17jYo-AY2ZU?feature=share

Except PCB itself You will need some PIN's with raster 2.54mm or JST XH2.54 connectors

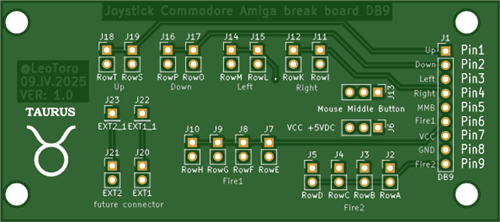

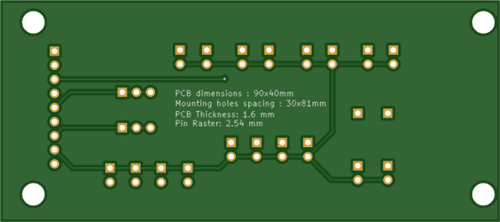

PCB dimensions : 90x40mm

Mounting holes spacing : 30x81mm

PCB Thickness : 1.6mm

Pin Raster 2.54mm

Download Gerbers
