Components

	Lite-On LTST-S220GKT LED SMD Diode 0805	x 18
	Vishay CRCW060350R0FKEA Resistor 50 Ohm 0603	x 18
	TE Connectivity BAT-HLD-001-TR CR2032 Battery Holder	x 1

Tools, APP Software Used etc.

KiCad 8.0

KiCad

Description

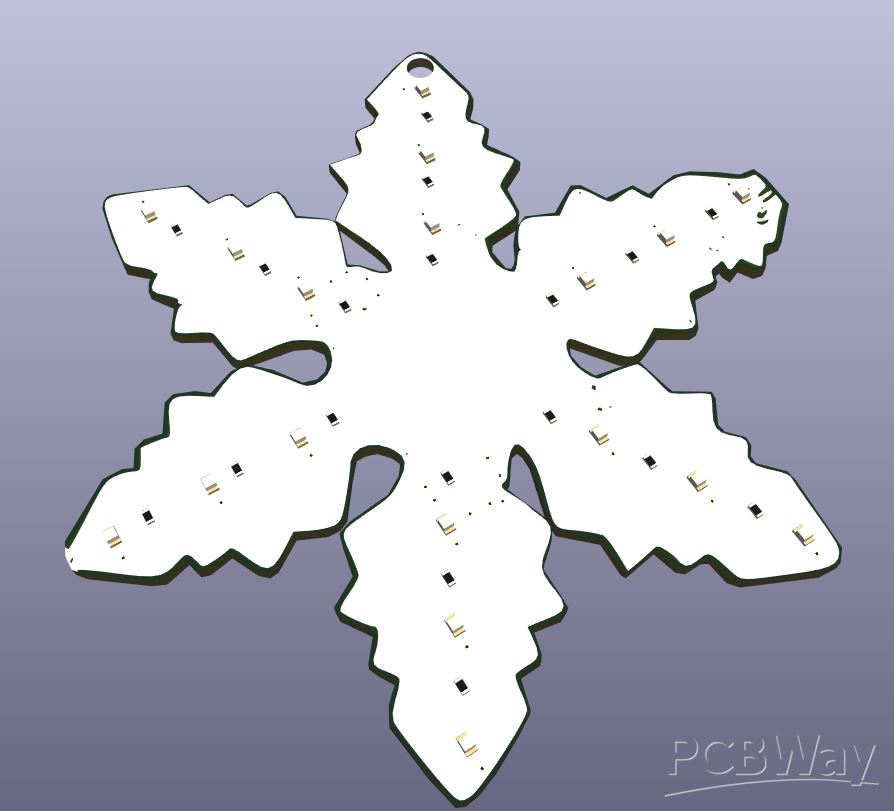

Christmas star

Christmas star to hang on the Christmas tree. Two-layer PCB containing 18 LEDs powered by a 3V CR2032 battery.

Schematic:

Parts List:

Lite-On LTST-S220GKT LED SMD Diode 0805 x 18 (D1-D12)
Vishay CRCW060350R0FKEA Resistor 50 Ohm 0603 x 18 (R1-R12)
TE Connectivity BAT-HLD-001-TR CR2032 Battery Holder x 1 (BT1)

Schematic and Layout

Schematic


Gerber files

GERBER.ZIP

BOM

Christmas star_BOM.xlsx

Download Gerbers Download BOM(Bill of materials)

Jan 12,2025

83 views

Christmas star

Christmas star built on 18 LED diodes.

Published: Jan 12,2025

Download Gerber file 0

BOM(Bill of materials)

PCBWay Donate 10% cost To Author

File Last Updated: 2025/01/12 (GMT+8)

File update record

2025-01-1216:41:45

Parts List (BOM) is updated.

2025-01-1216:30:25

Parts List (BOM) is updated.
