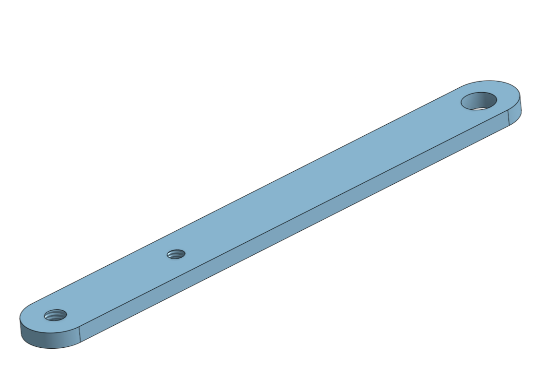

CB/Flag Antenna Bracket

This is a 9" x 1" x 1/4" bracket designed to mount an antenna or flag post via a standard 3/8-24 stud mount. This is specifically designed for a Honda ST1300 motorcycle via the GIVI E215 MONOKEY REAR RACK. It uses the following hardware:

McMaster 92185A617 - 5/16-24 316 Stainless Steel Socket Head Screw (for mounting to the rear rack plate)

McMaster 99607A186 - 1/4-20 Stainless Steel Flared-Collar Knurled-Head Thumb Screw (For attaching ground radial to mount)

The holes

The length of this is designed to clear the width of the factory Givi trunk box for mounting an antenna, antenna mast, or flag post.

CAD-Custom parts and enclosures

Antenna Bracket

C-5P1W1039040A_Antenna Bracket.step

AntennaBracketDrawing.pdf

Jul 06,2026

14 views

CB/Flag Antenna Bracket

This is a 9" long bracket that I designed to mount an antenna/flag to my Honda ST1300 motorcycle via the GIVI E215 MONOKEY REAR RACK.
