Description

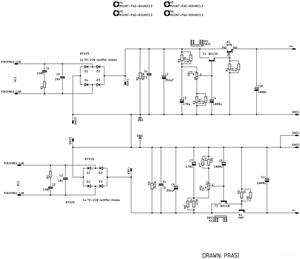

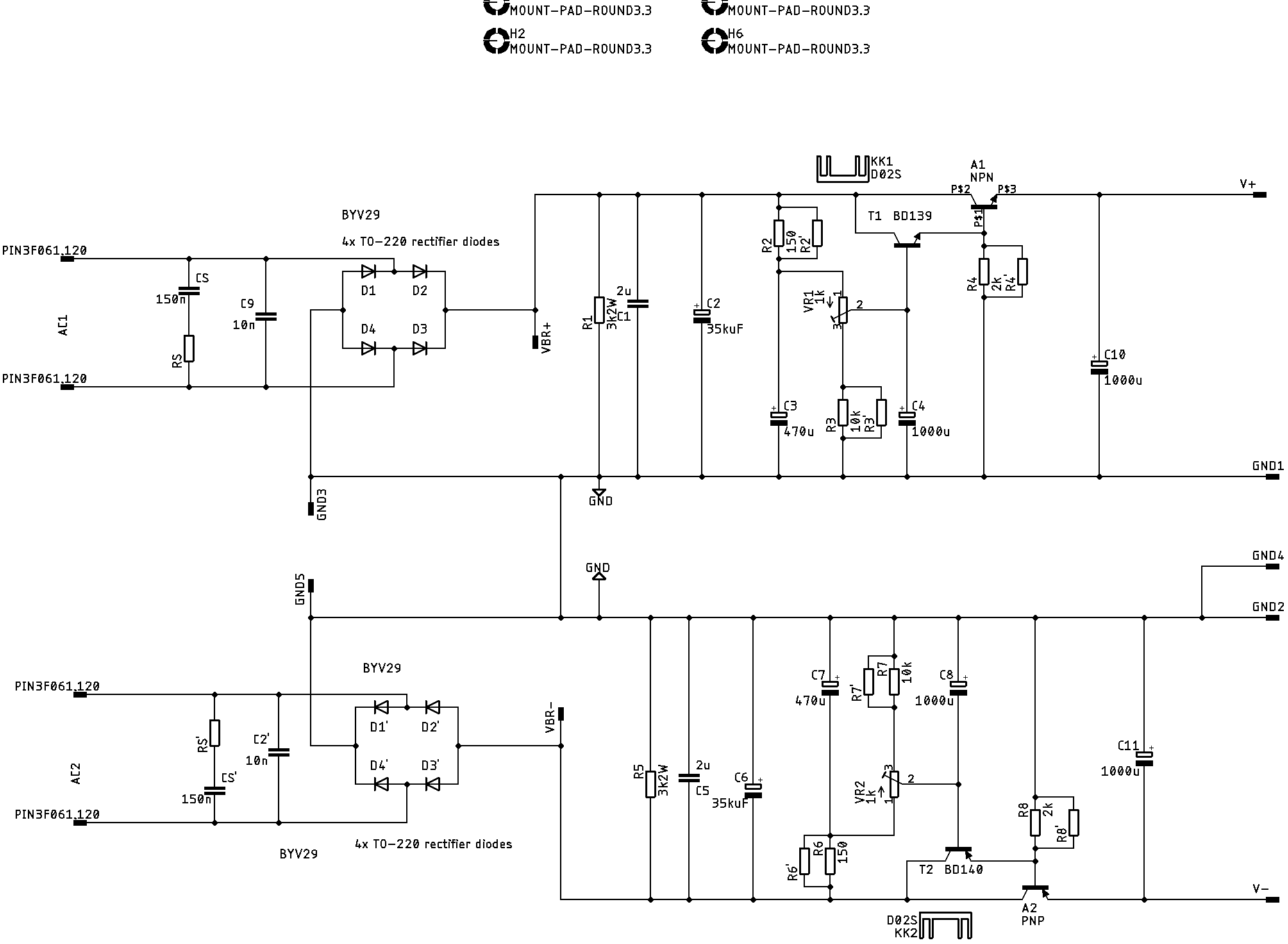

CAP MULTIPLIER- MARK JOHNSON/GTOSE

THIS MARK JOHNSON /GTOSE CAP MULTIPLIER PSU FOR AMPS.

ALL DETAILS HERE

https://www.diyaudio.com/forums/power-supplies/297921-jumas-easy-peasy-capacitance-multiplier-post5510507.html

BOM FILE HERE

https://www.diyaudio.com/forums/power-supplies/297921-jumas-easy-peasy-capacitance-multiplier-post6161883.html

Download Gerbers

Dec 20,2020

4,344 views

CAP MULTIPLIER- MARK JOHNSON/GTOSE

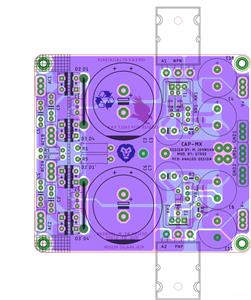

2 Layers PCB 90.93 x 99.57 mm FR-4, 1.6 mm, 1, HASL with lead, Red Solder Mask, White silkscreen

ALL DETAILS AT FOLLOWING https://www.diyaudio.com/forums/power-supplies/297921-jumas-easy-peasy-capacitance-multiplier-post5510507.html

4344

Published: Dec 20,2020

Standard PCB

Download Gerber file 87

PCBWay Donate 10% cost To Author

Only PCB

Add to cart

*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.

Copy this HTML into your page to embed a link to order this shared project

Copy

Under the Attribution-ShareAlike (CC BY-SA) License.
