C64 User port Breakout
A port for easier accessibility from:
https://github.com/hackup/C64UserBreakout

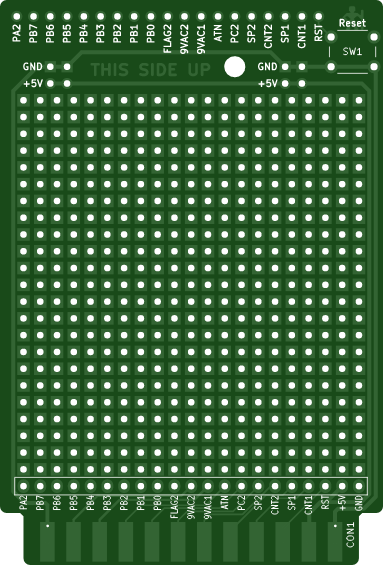

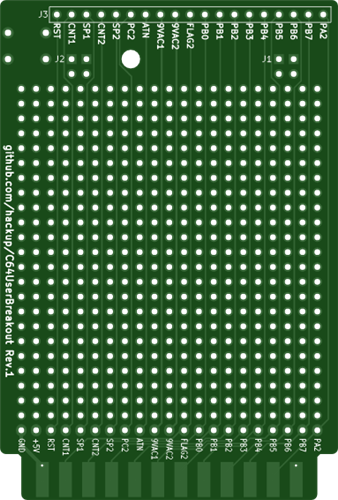

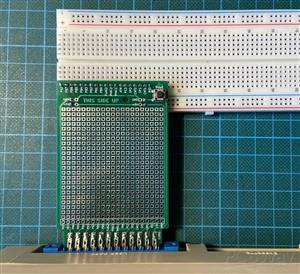

his is a combined prototyping and breakout PCB for the user port of the Commodore 64. It connects the user port to a standard 830 pin prototyping breadboard to assist with the development of modules or cartridges. In addition, it features a perfboard area that can be used for simple prototypes.
C64 User port Breakout
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
Read More
