Description

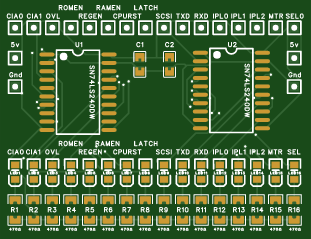

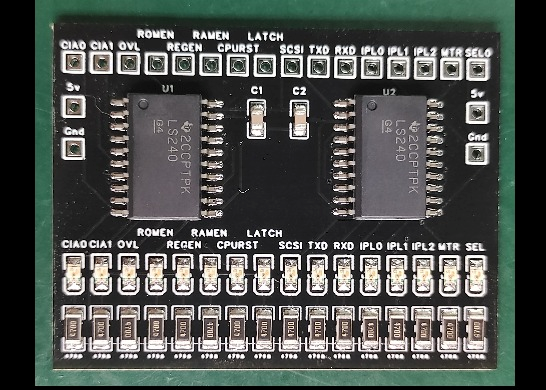

Blinken Lights
16x LED's that are activated with an Active Low input.

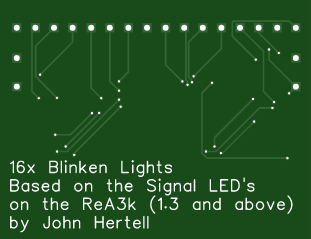

Inspired by John Hertell's indicator lights on the ReAmiga boards
Inputs, and LED names are based around the ReAmiga3000
5v TTL compliant
Sep 03,2025
114 views
Blinken Lights
16x LED's that are activated with an Active Low input, and 5v TTL compliant.
114
0
0
Published: Sep 03,2025
