Tools, APP Software Used etc.

KiCad 8.0

Description

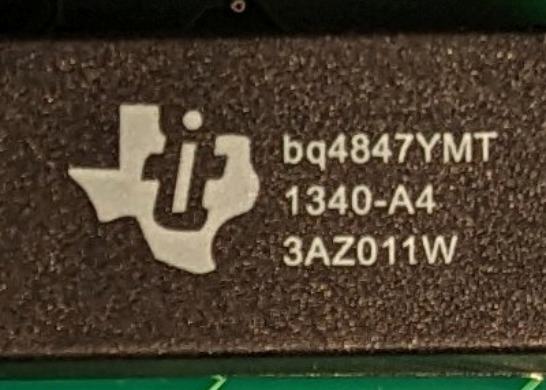

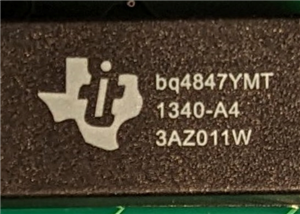

BQ4847Y Replacement

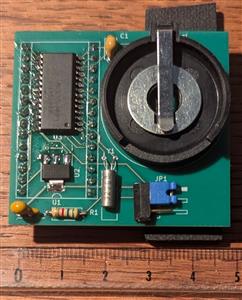

It is becoming increasingly difficult to find the BQ4847Y with a fresh battery. This board allows you to replace the component with a BQ4802LYW, in accordance with the manufacturer's specifications. The BQ4802Y can also be installed in the 3.3V regulator. The battery holder accommodates 2032 and 2430 sizes, whether using a standard battery or a rechargeable cell; in the latter case, simply adding a diode and a 48-ohm resistor enables charging of the corresponding LIR version.

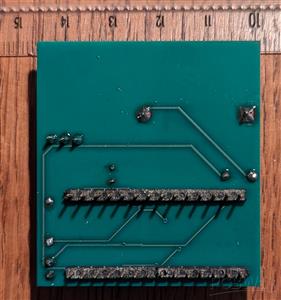

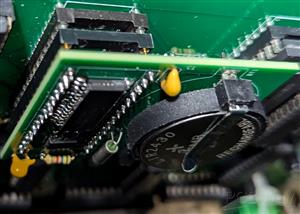

It has now been a year since I replaced the BQ4847Y on my TI-99/4A PEB IDE card with the board described here, and there have been no issues with the DSR. It is much more stable than before...

This version can accommodate rechargeable 3.7V LIR2430 batteries, ensuring data retention for the life of the unit.

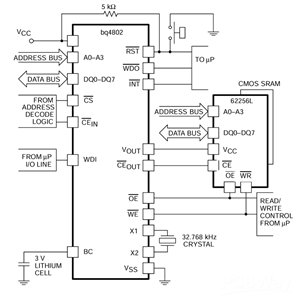

Schematic and Layout

BQ4802-Schematics.pdf

CAD-Custom parts and enclosures

BQ4802 48mm 43mm5.jpg

Download Gerbers Download BOM(Bill of materials)

Sep 28,2026

14 views

BQ4847Y Replacement

Replacement of the obsolete BQ4847Y with the BQ4802LYW or the 5V version. TI99/4A, IDE Card or others...
