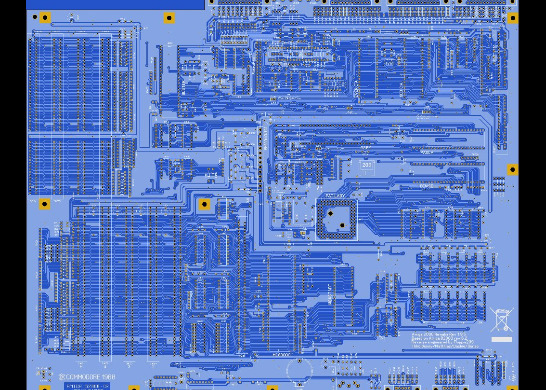

Amiga 2000 motherboard

Amiga B2000 motherboard

PCB size: 416.95mm x 346.25mm

I used the following data to order the pcb::

Layers - 2 PCB

Dimension - 416.95mm * 346.25mm

PCB Qty - 5

PCB Thickness - 1.6mm

PCB Color - Blue

Surface Finish - ENIG-RoHS

Copper Weight - 2oz Gold Fingers -

No Material Details -

FR4-Standard Tg 130-140C -

No Flying Probe Test -

Fully Test Castelated Holes - No

Different Design - 1

Remove Order Number - No

DO NOT POPULATE: C902, C917, R901, FB904, FB906, RP904, RP906, RP905, C230, C240, CN704, they are unpopulated on factory 6.2 rev, so, leave them as-is.

POPULATE: CN705, CN706, CN707

Download Gerbers Download BOM(Bill of materials)

May 24,2026

369 views

Amiga 2000 motherboard

A Reproduction Amiga 2000 rev 6.2 motherboard 416.95mm x 346.25mm
