Atomic Force Microscope - electronic part
AFM, atomic force microscope is a scientific device capable of 'seeing' with magnification greater of any optical microscope.
Why I've decided to do? Because it's the right thing to do! It's about justice, everyone in this world should have the right to access science and scientific education. It's about making the world a better place, for you and for me and for entire human race.
Most of the information about building AFM is scattered around the web. Unfortunately, there is no place with fully functional product or even prototype.

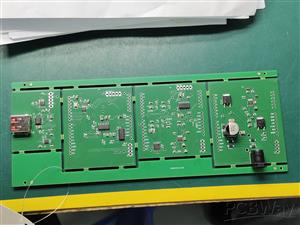

Now with PCBA service of PCBWay, everyone can build AFM simply by getting assembled boards (the electronic part) and printing 3D parts. Connecting everything together and hopefully it work from first run.
For more information and details got to :
https://hackaday.io/project/191403-atomic-force-microscope-from-ground-up
