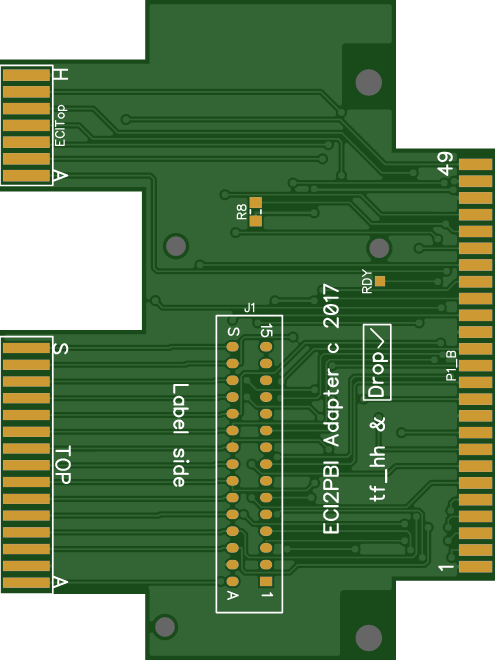

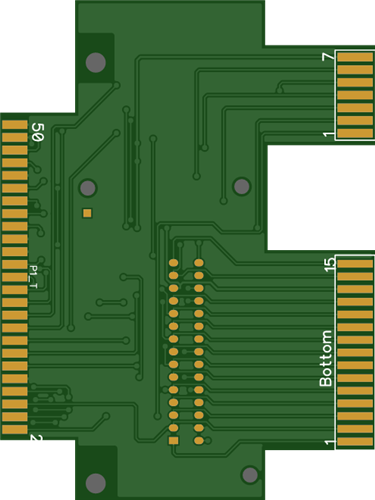

Atari XE ECI port to XL PBI Angle Cart
Original Creator and Website: https://www.bitsofthepast.com/PBI_ECIBoards.html#
ATTENTION: This project requires hardwiring as you will see in the following explanation.
Signal CASinh needs to be hardwired from 130XE Freddie pin 4 to ECI reserved pin A internally, Signals HALT, $D1xx, RD5 and CASinh are hardwired to PBI pins 33, 37, 39 and ENTNB respectively on the adapter. RDY needs to be hardwired from 130XE ANTIC pin 15 to RDY single pin on adapter.
These are the only three parts needed for the XE ECI to XL PBI Single Cart adapter PCB
Card Edge Connector 15x2P 2.54mm 240-30
Card Edge Connector 25x2P 2.54mm 240-50 (Why?, i don't know why these)
6.8K ohms Chip Resistor 1206 1/4 W 5%
Atari XE ECI port to XL PBI Angle Cart
