Gordon L Gibby
UNITED STATES OF AMERICA • + Follow
Description
Arduino Winkeyer Emulator Based on K3NG code
This project allows you to build a working WINKEYER. See the enclosed MANUAL which includes both operating and building instructions.
Be certain to set the computer port to 1200Baud if controlling it from a logger like N3FJP etc.
See: https://www.nf4rc.club/how-to-docs/alachua-county-arduino-winkeyer/
https://www.nf4rc.club/how-to-docs/arduino-winkeyer-packaging-instructions/
Feb 25,2025
661 views
Arduino Winkeyer Emulator Based on K3NG code
Project to build a K3NG-based Winkeyer
661
2
6
Published: Feb 25,2025

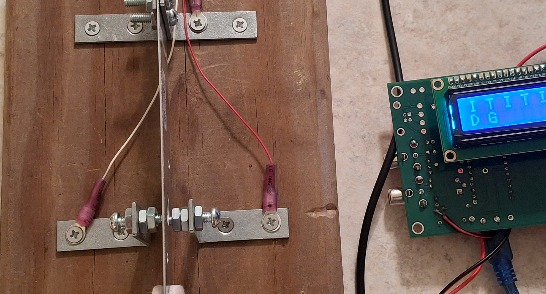

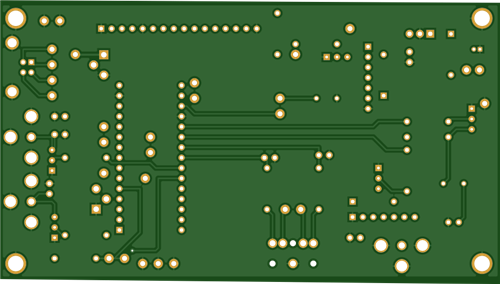

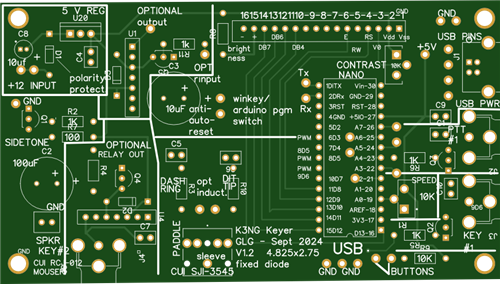

Standard PCB
Download Gerber file 13
BOM(Bill of materials)
Other files for Assembly
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
