Amiga 1000 A1050 256K chip ram expansion w sockets

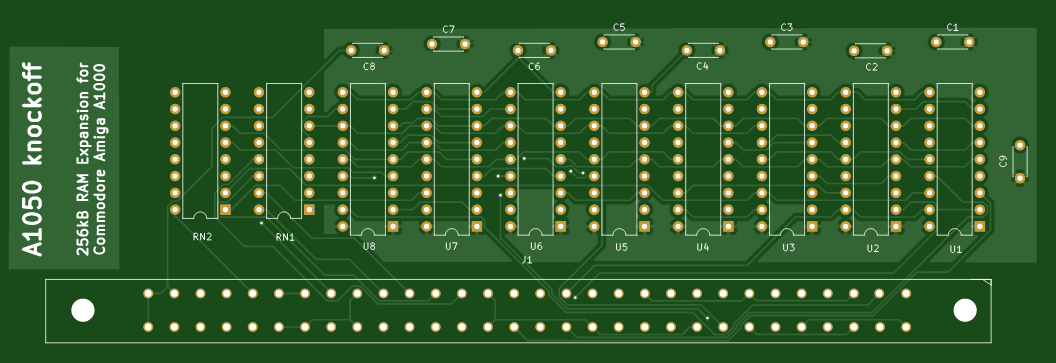

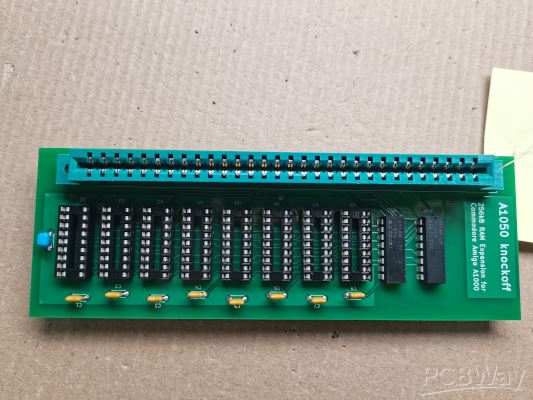

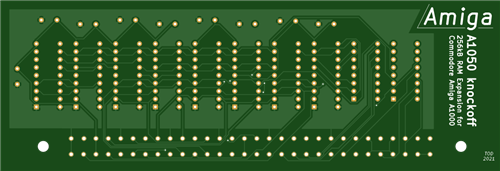

This is a Commodore Amiga 1000 A1050 front 256k chipram module. This is a open source project by TOD.uses This has TWO updated 65535 word byte TIL chips that allow you to use 120ns 64kx4 18pin dram versus the 150ns that originally came with the Commodore A1050. The ram is now in sockets so you can replace any bad modules. PLease use known good ram sources. if you have fake or bad ram the board will just get hot and the A1000 power light will blink. see my video below to watch me have this issue and get it resolved with quality ram. The open source project for this design and usage licensing is here https://bit.ly/3EDfCRh
you can watch the full project creation, build from PCBway, and its testing and working implentation to see it in action here:
Amiga 1000 A1050 256K chip ram expansion w sockets
*PCBWay community is a shared platform and we are not responsible for any design issues.
