Description

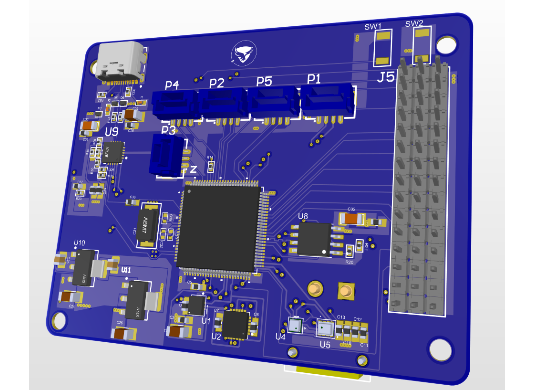

Alex_eagles Flight controller
Our submission for the pcbway design contest 2026 is a custom flight controller board compatible with the ardupilot firmware and has the following features:
Dual IMU sensors
Dual Barometer sensors
External flash memory
Micro SD card slot for recording flight logs
8 ESC outputs
6 auxiliary motor outputs
SBUS port as well as SPKT port
USB connector for uploading firmware and using the flight controller independent of system battery

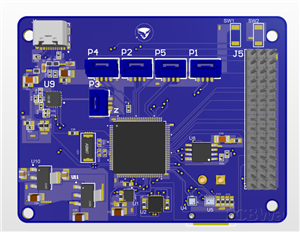

Schematic and Layout
altium project
https://github.com/Alex-Eagles/Season_26_AE_Hardware_System/tree/master/Fligh_controller/Flight_Controller_v1
