Description

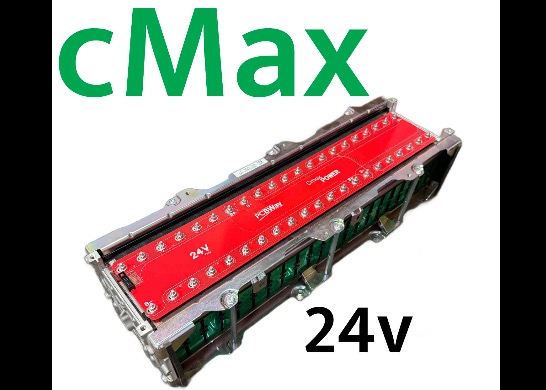

24v cMax NMC battery module Busbar Kit
This project helps you to build a 24v 75Ah battery pack using the 21 cell cMax module.

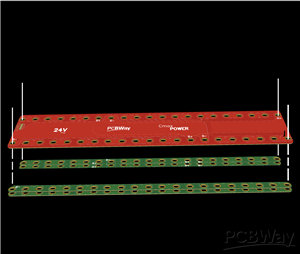

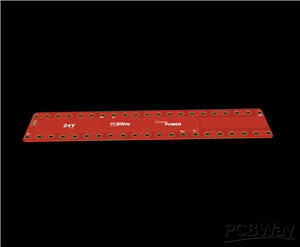

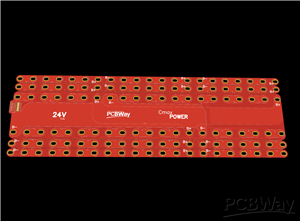

it consists of 5 printed boards, one main board and 4 reinforcement strips (2 on each side)
Very easy to build, minimal tools needed.
Parts needed to finish this project:
1- Socket connector - https://amzn.to/3FSQLQa
2- Screw Terminal connector - https://amzn.to/4kFIwpW
3- 42x M5 nuts - https://www.mcmaster.com/93033A106/
4- $149 Cmax modules - https://www.pcbway.com/project/shareproject/24v_cMax_NMC_battery_module_Busbar_Kit_07a7f208.html
optional
JK BMS- https://amzn.to/3ZsxHPw
Jun 13,2025
382 views
24v cMax NMC battery module Busbar Kit
Easy to build 24v busbar kit for 21 cell cMax modules
382
0
0
Published: Jun 13,2025
Standard PCB
Download Gerber file 3
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
