Product Description

Quark Quantum Project Mini Linux Development Board

Mini Core Board

Quark-N is probably the smallest Linux development board on the market, a personal server, intelligent voice assistant, robot development tool. 6 layers of high-density gold PCB design, in a 2x3cm space to integrate the complete ARM-Linux system (CPU, DDR, eMMC); the board through the M.2 Key-A gold finger interface to lead most of the GPIO, greatly reducing the difficulty of the design of the base board. It is easy to design your own backplane with two layers of boards for your interesting creations.

Powerful Extended Version

Atom-N, or Atom in Chinese, is the expansion board for Quark-N, which is connected to Quark through M.2 interface. Compared with the more conventional card computers, Atom-N has a row of gold fingers to make it possible to expand the IO interfaces, such as SPI, I2C, UART, GPIO, etc., so that it is easy to complete your own design and add microphone, MPU6050 motion sensor, board, etc. MPU6050 motion sensor, 4 onboard buttons (GPIO-KEY, Uboot, Recovery, Reset), IPS display, Wifi Bluetooth module, greatly expand the playability and usability.

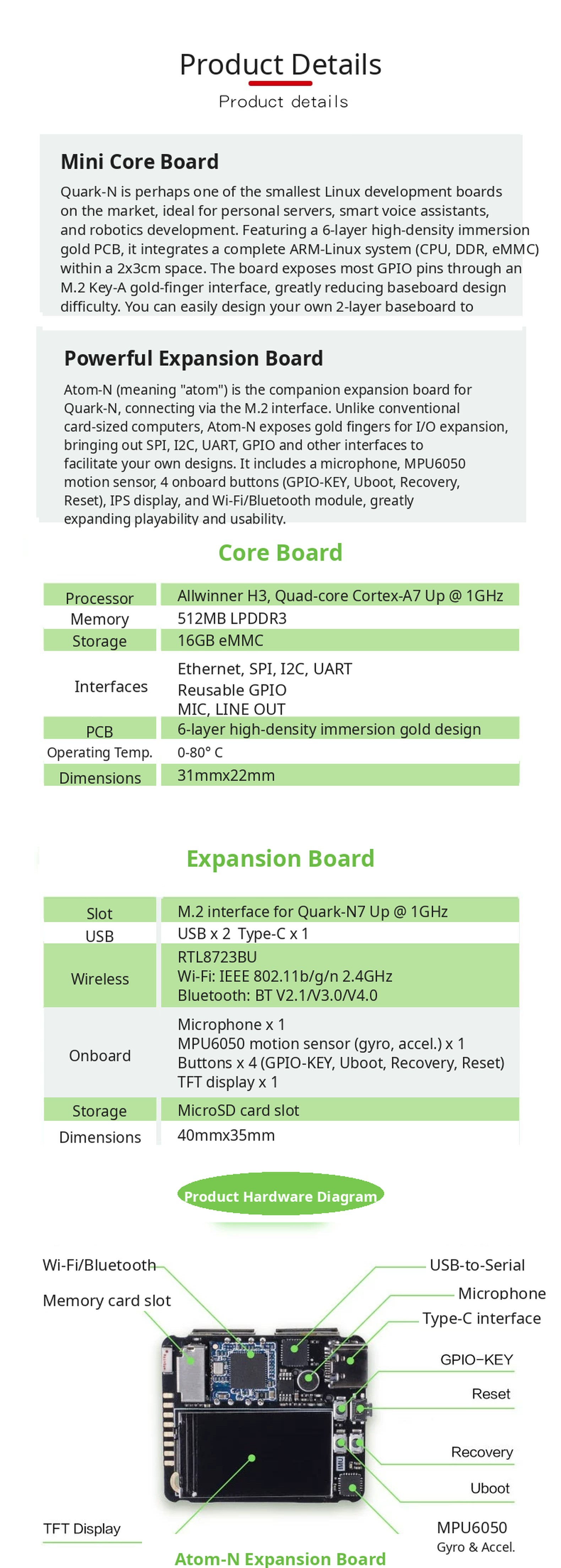

Core Board

Processor: Allwinner H3, Quad-core Cortex-A7 Up @ 1GHz

Memory: 512MB LPDDR3

Storage: 16GB eMMc


Ethernet, SPI, l2C, UART

Multiplexable GPIO


PCB: 6-layer high-density sunken gold design

Operating temperature: 0-80°C

Size: 31mm x 22mm
