Product Description

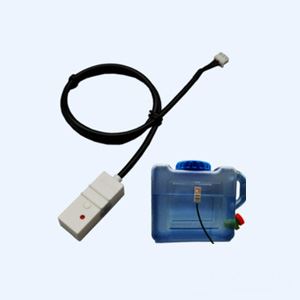

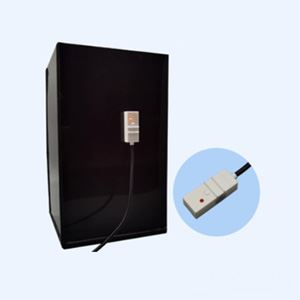

Non-contact liquid level sensor
Product parament
Model: HMX-A6
Working voltage: 5-12V
Accuracy of liquid level: 1.5mm
Material of shell: ABS
Working temperature:-25℃+85℃
Response time: 300mS
Waterproof performance: IP67
Temperature drift: < 10% (Sr)
Short circuit protection: Yes
Overload protection current: 200mA
Repetition accuracy: < 1.0% (Sr)
No-load current: 11mA
Maximum load current: 120mA
Wire length: 500mm (±10mm)
The non-contact liquid level sensor is widely used in life scenes such as drinking fountains, chaotic towers, sewage treatment equipment, coffee machines, etc. It is a simple-to-operate performance, high-level functional module.

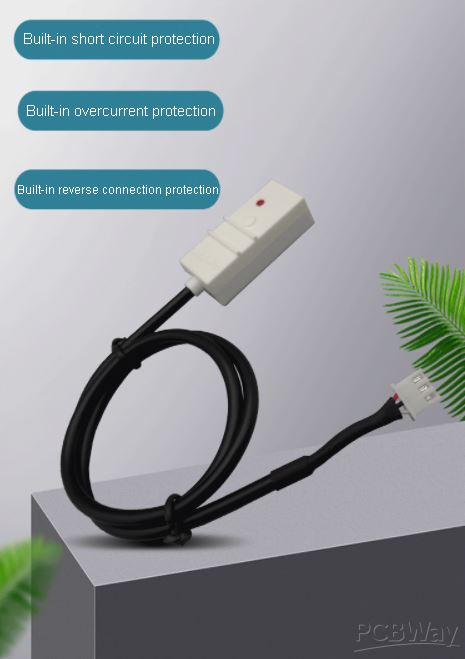

- Short circuit protection
- Reverse connection protection
- Overcurrent protectio
