Weather & Calendar 1.9" Epaper display

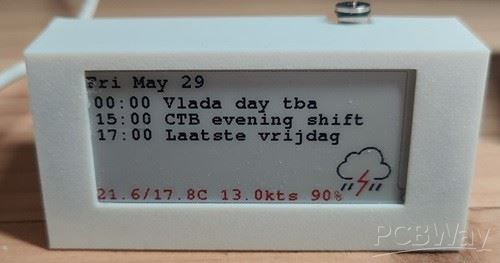

As shown on the picture, the display is not aligned with the frame. But that is my mistake. The display is controlled by a ESP32 C3 supermini that is connected directly to it. I do like the front sticking out so the display is tilted a bit.As the USB charger is micro USB and I am a bit scared it will detach from the case I put in a magnetic charge plug.



May 30,2026
