Soldering Jig

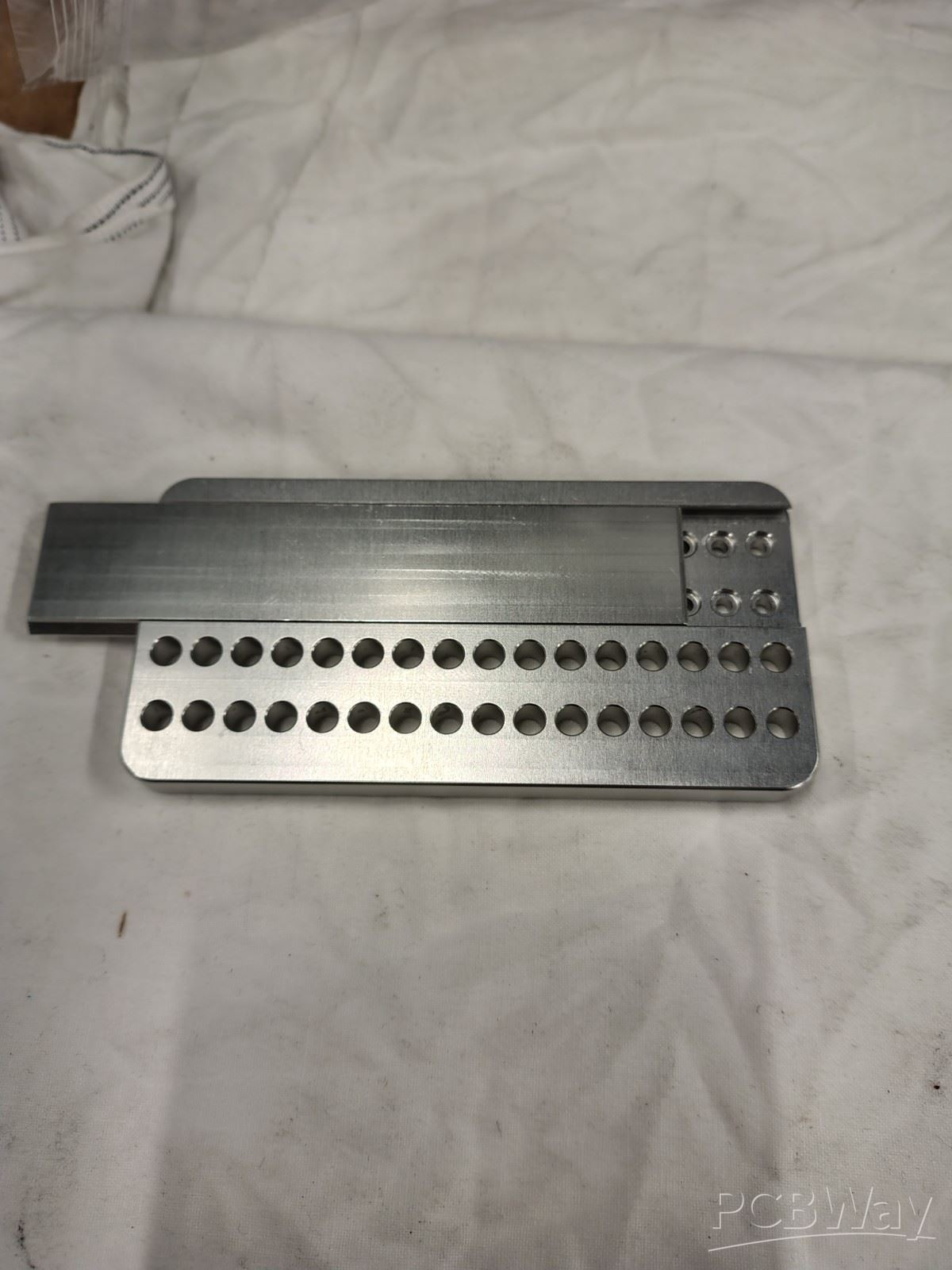

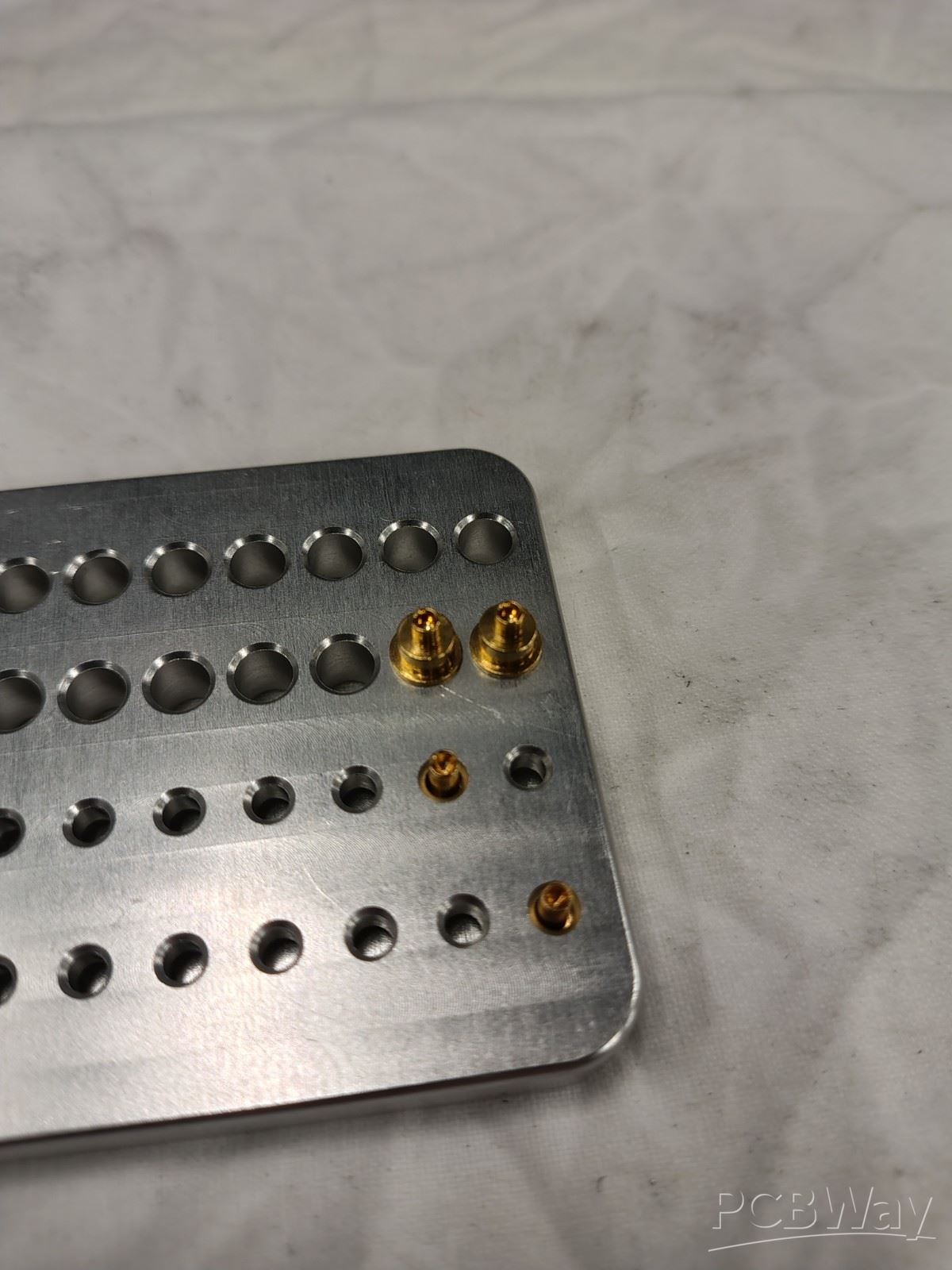

This project was to create a jig to hold some very small contacts that required soldering to thin wires. This came out flawlessly we are extremely happy with the results, the finish is exceptional and the dimensions hold perfectly even with the anodised finish.
