Soldering Jig Cover

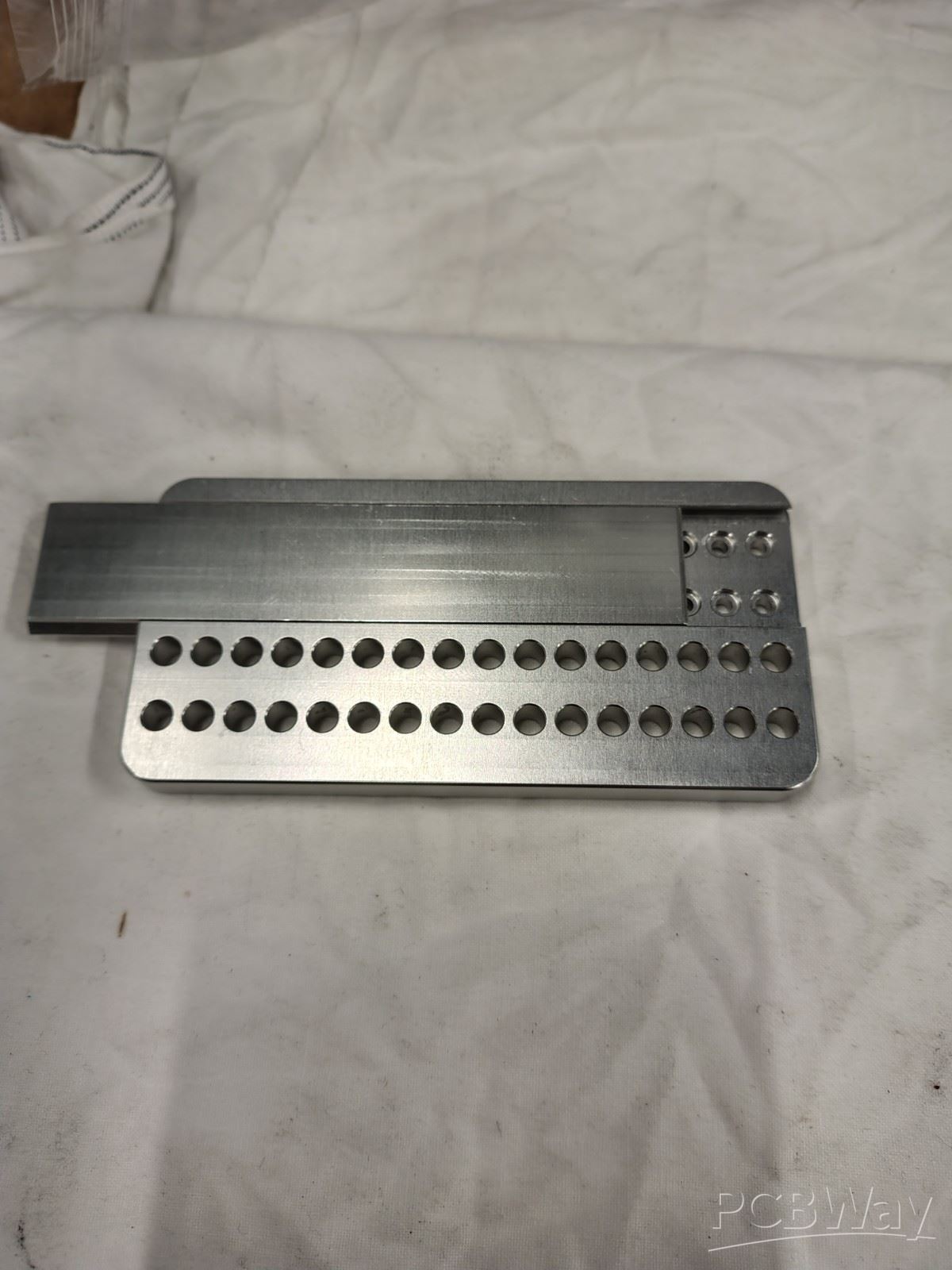

This project was to create a jig to hold some very small contacts that required soldering to thin wires. This came out flawlessly we are extremely happy with the results, the finish is exceptional and the dimensions hold perfectly even with the anodised finish. This part fit perfectly with the first part. sliding in without any binding, it perfectly covered the soldering contacts holding them in place
