Remote controller PCB

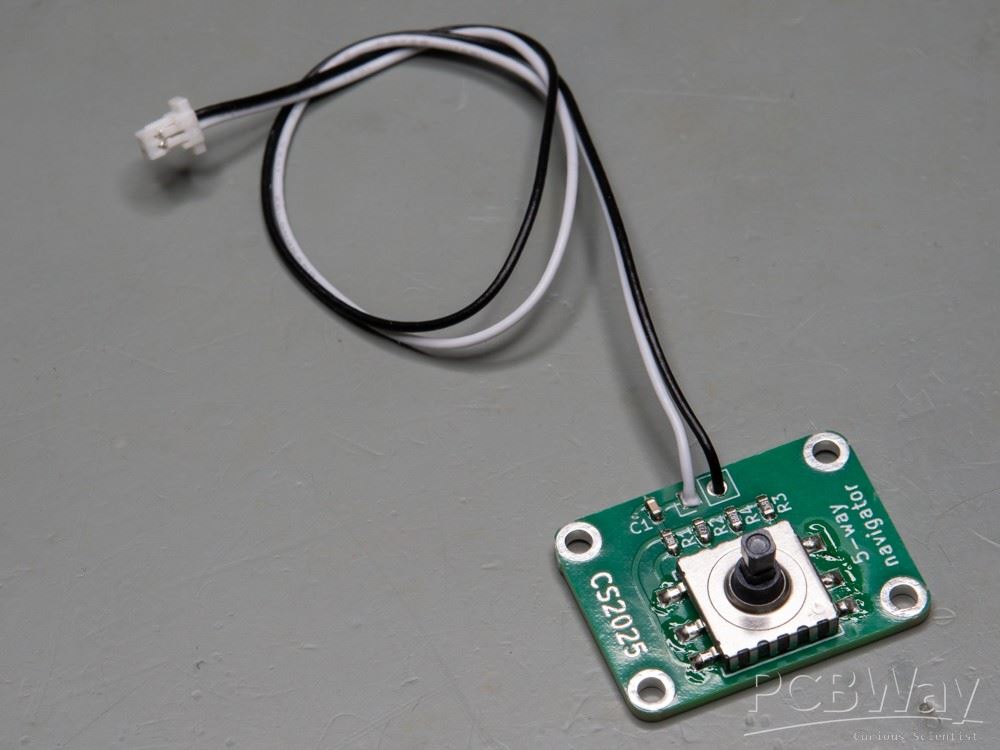

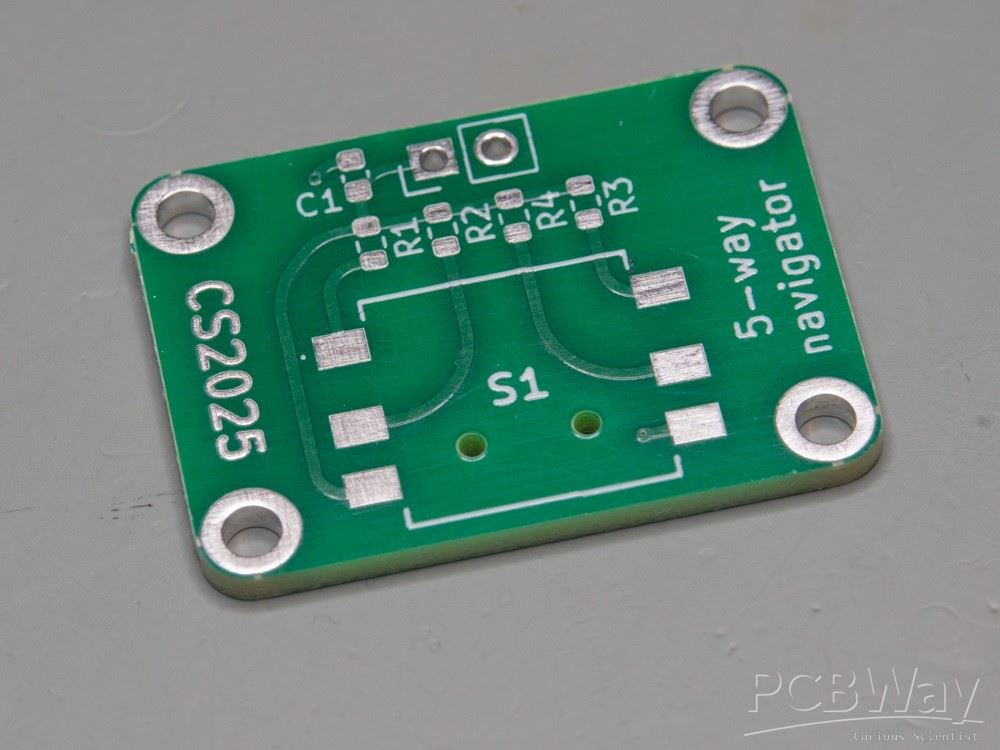

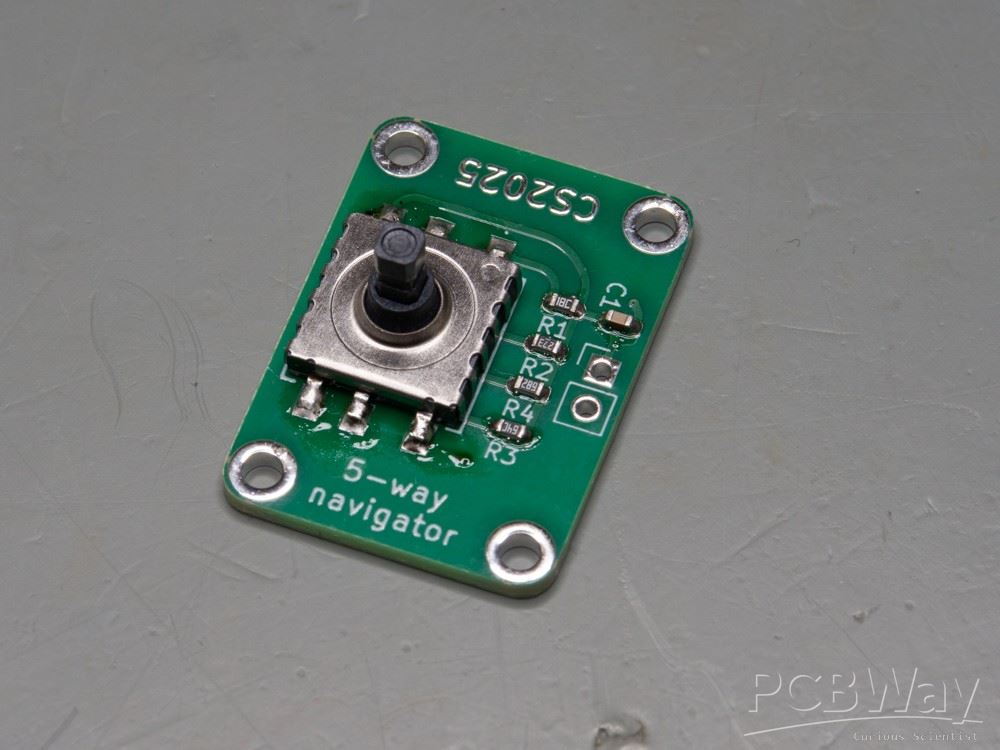

I primarily designed this PCB to replace the original controller of my FPV camera. But in fact, it can be used with any microcontroller and it can be made into a nice little navigator joystick. The circuit has a 5-way joystick and its auxiliary components. The PCB turned out well. Traces look fine and the PCB itself, too. Everything was nice and clean, and the packaging was solid. The holes and edges are well made. I am satisfied with the purchase. Thank you!
