Light meter for analog cameras

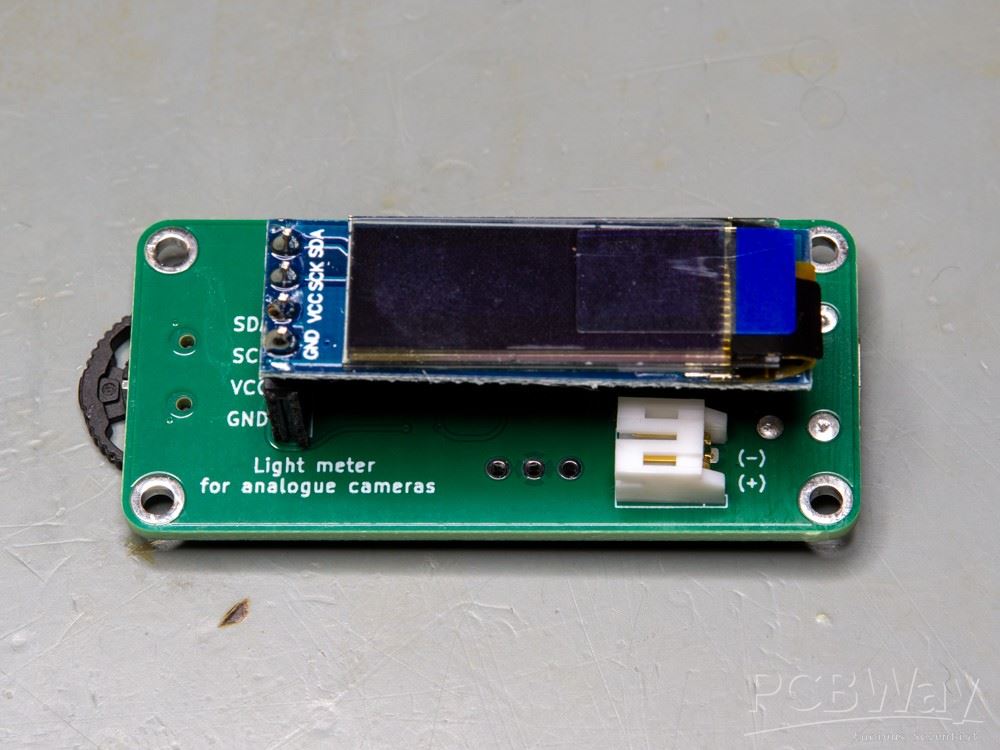

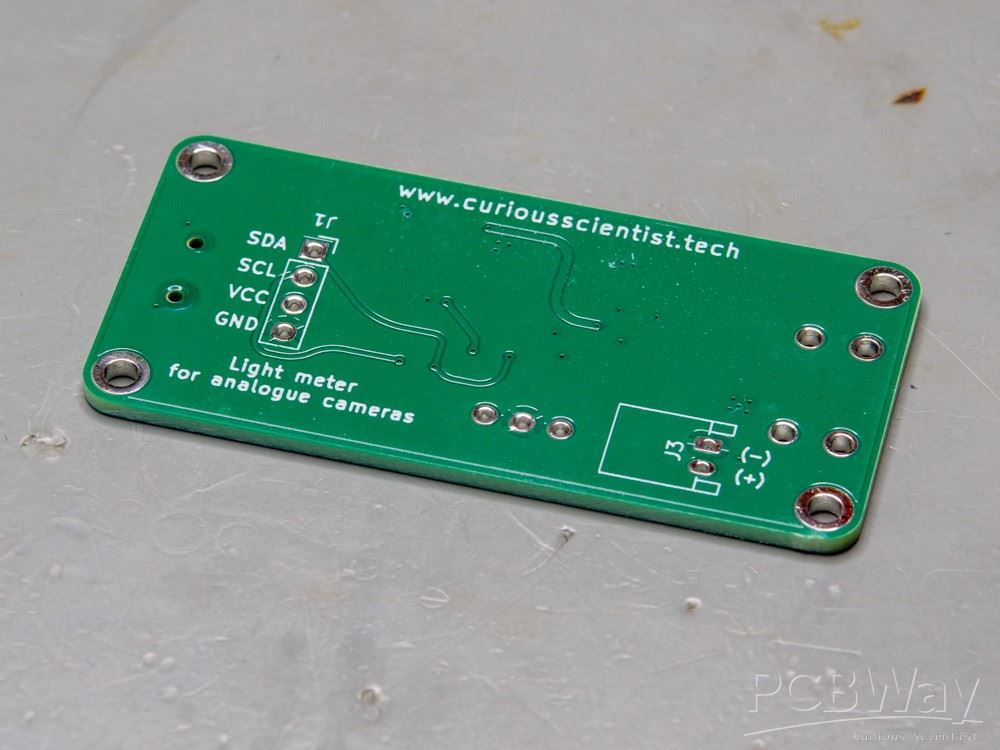

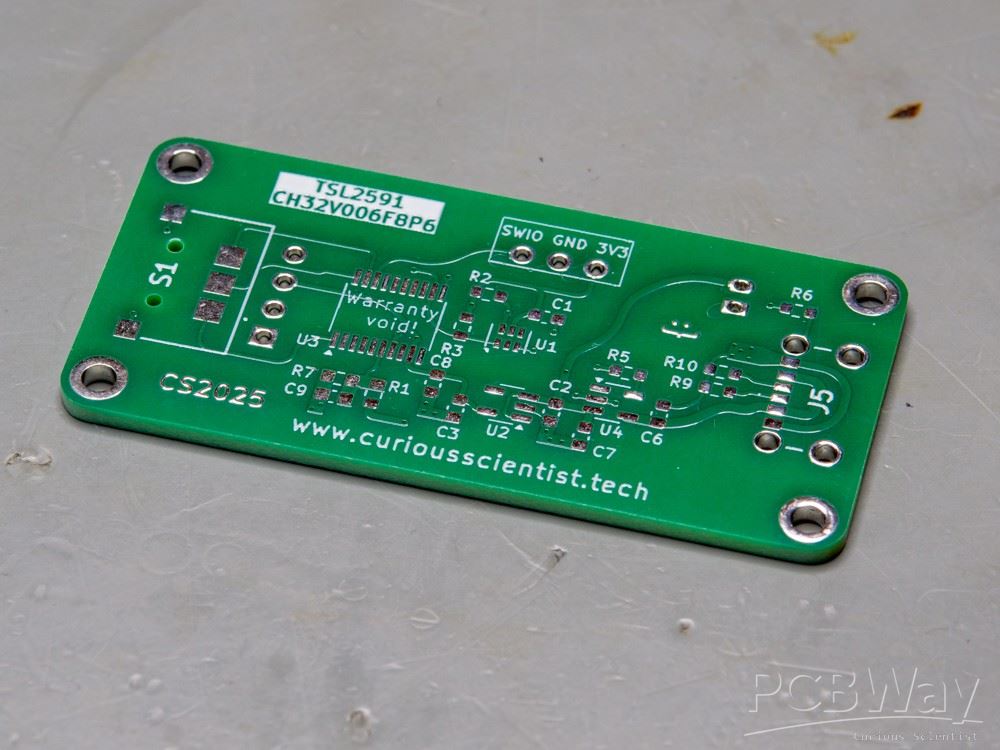

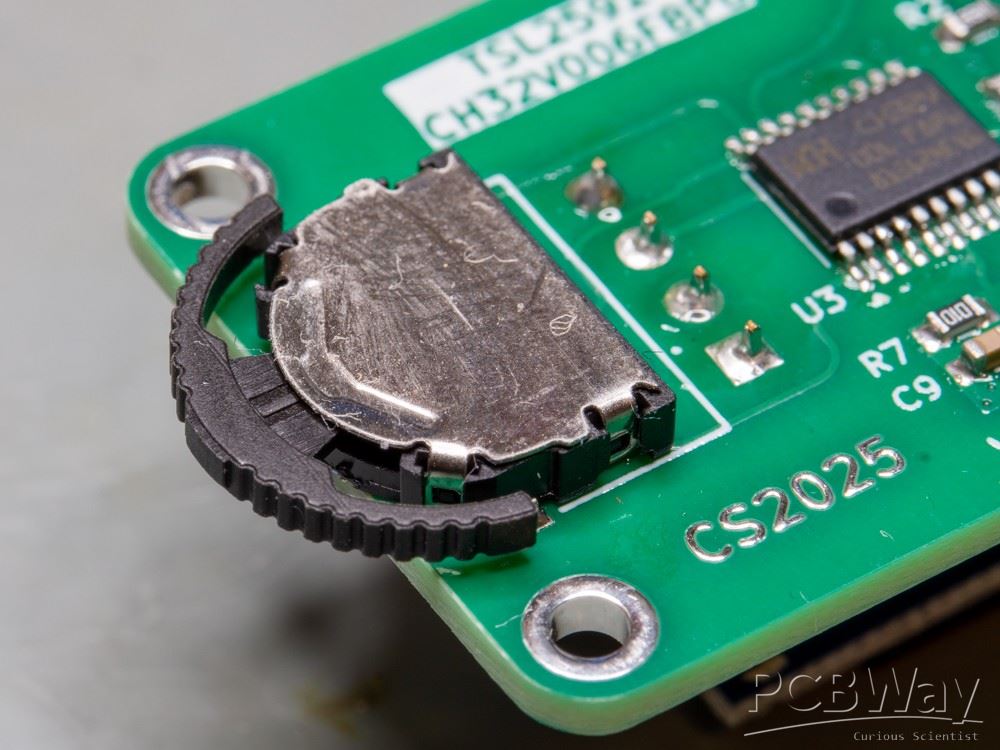

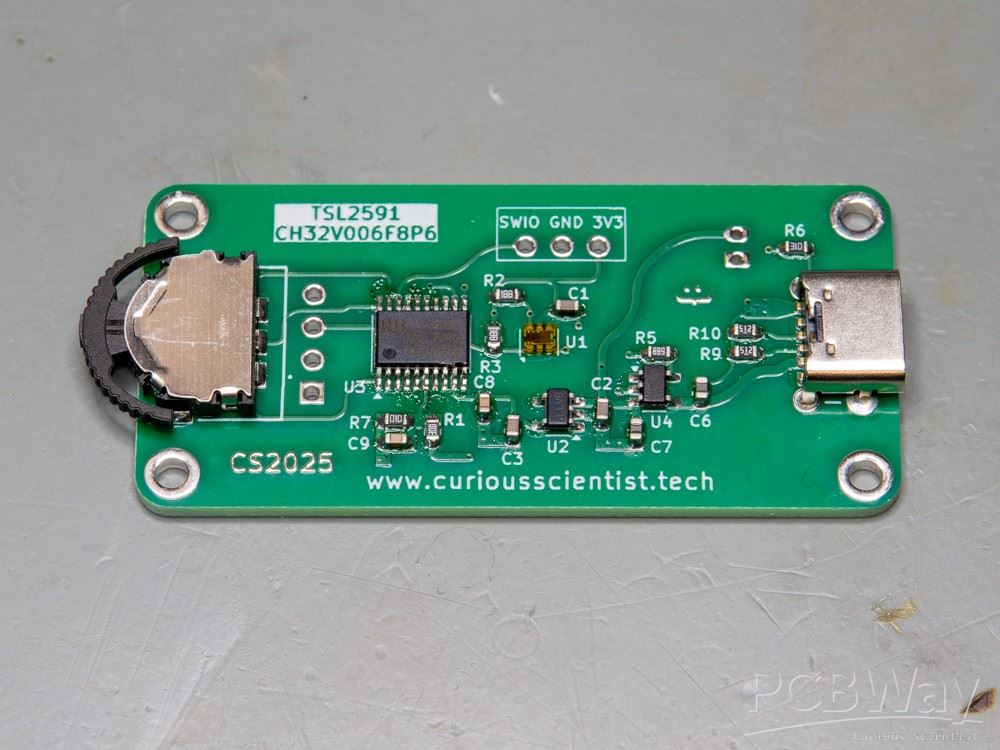

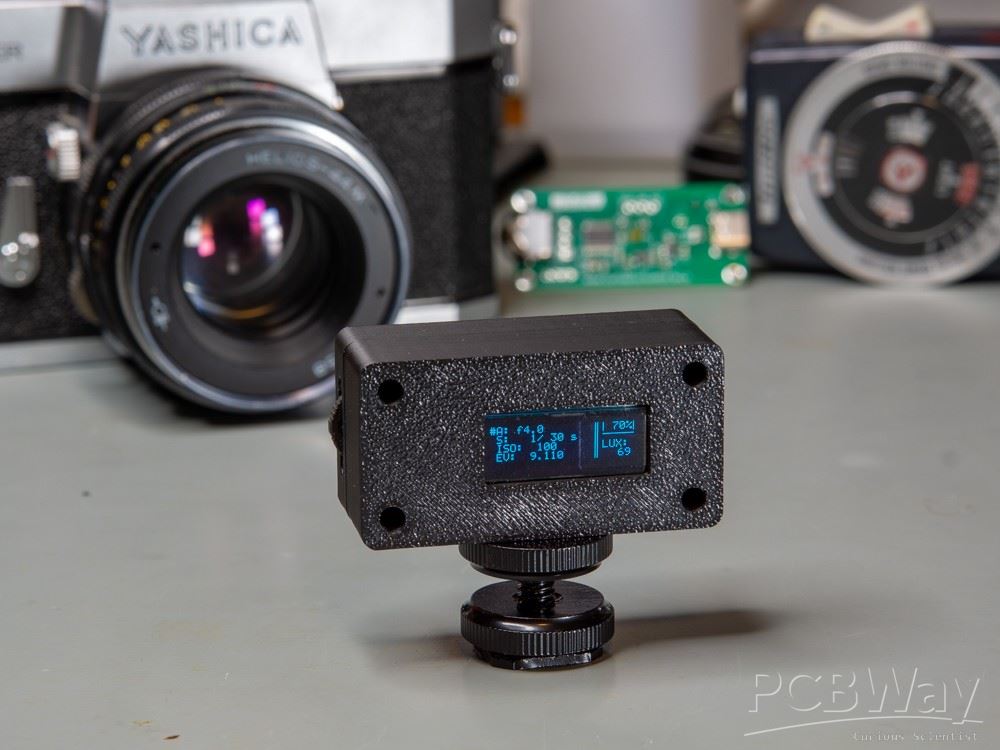

I designed this PCB based on the TSL2591 light meter chip. The purpose of the circuit is to measure light and suggest an exposure value. So, people who want to shoot photos with analog cameras without a built-in light meter can configure their cameras correctly. The PCB turned out excellent. The rounded traces look fine. The tabs are in good condition. The boards were clean. The silkscreen looks good on both sides, even the small text. I am satisfied with the purchase. Thank you!









Oct 03,2025
