DYI Forcefeedback joystick

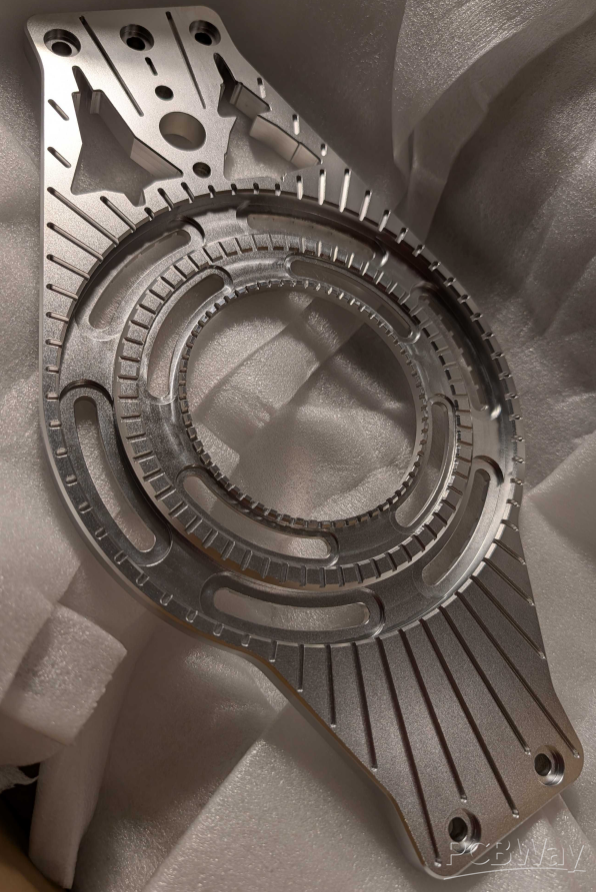

I'm building a force feedback joystick base with the original dimensions of the Viggen. This is a component that needs to be aluminium and milled du to the "complex" coaxial traces that I can't do in my own little shop. The finnish is extreamly nice and I am very proud of the results. Far beyond my hopes. I was expecting to spend hours finishing the surface, but it's almost immaculate. There are some few blemishes and traces of the tools. Very nice.


Mar 20,2026
