DSKY-matic LED Digital Indicator Replica

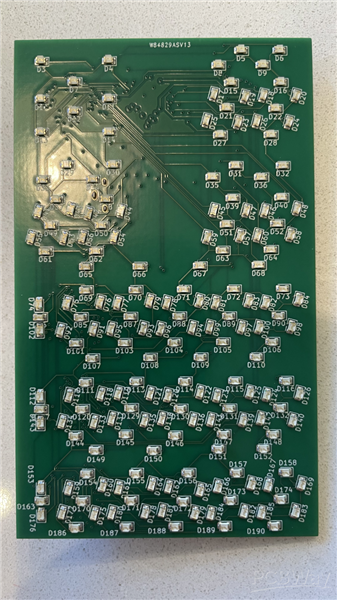

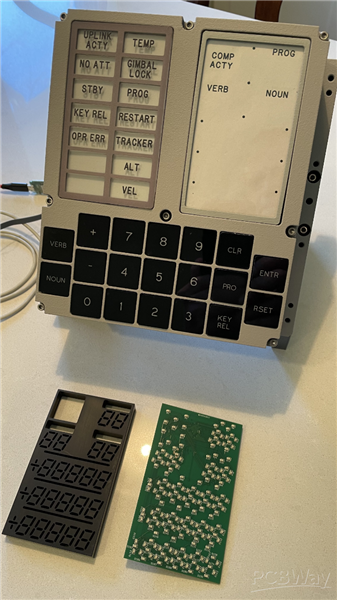

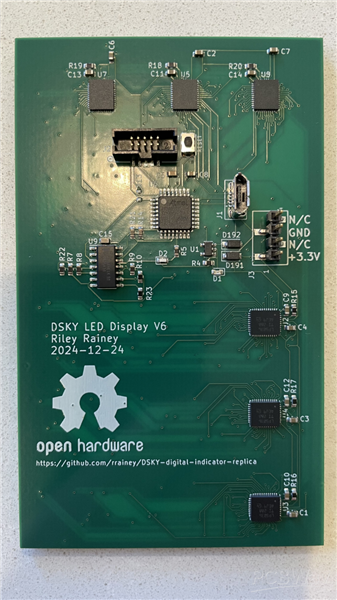

This board is part of my Apollo Guidance Computer replica project: https://github.com/rrainey/DSKY-matic - This board drives an array of 180+ LEDs that simulate the electroluminescent display on the original AGC DSKY panel. The overall quality of the boards was great and all ten flashed and passed my initial testing with no flaws. PCBWay graciously offered to sponsor part of this manufacturing cost -- most appreciated.
