Autonomous Deadcat Drone

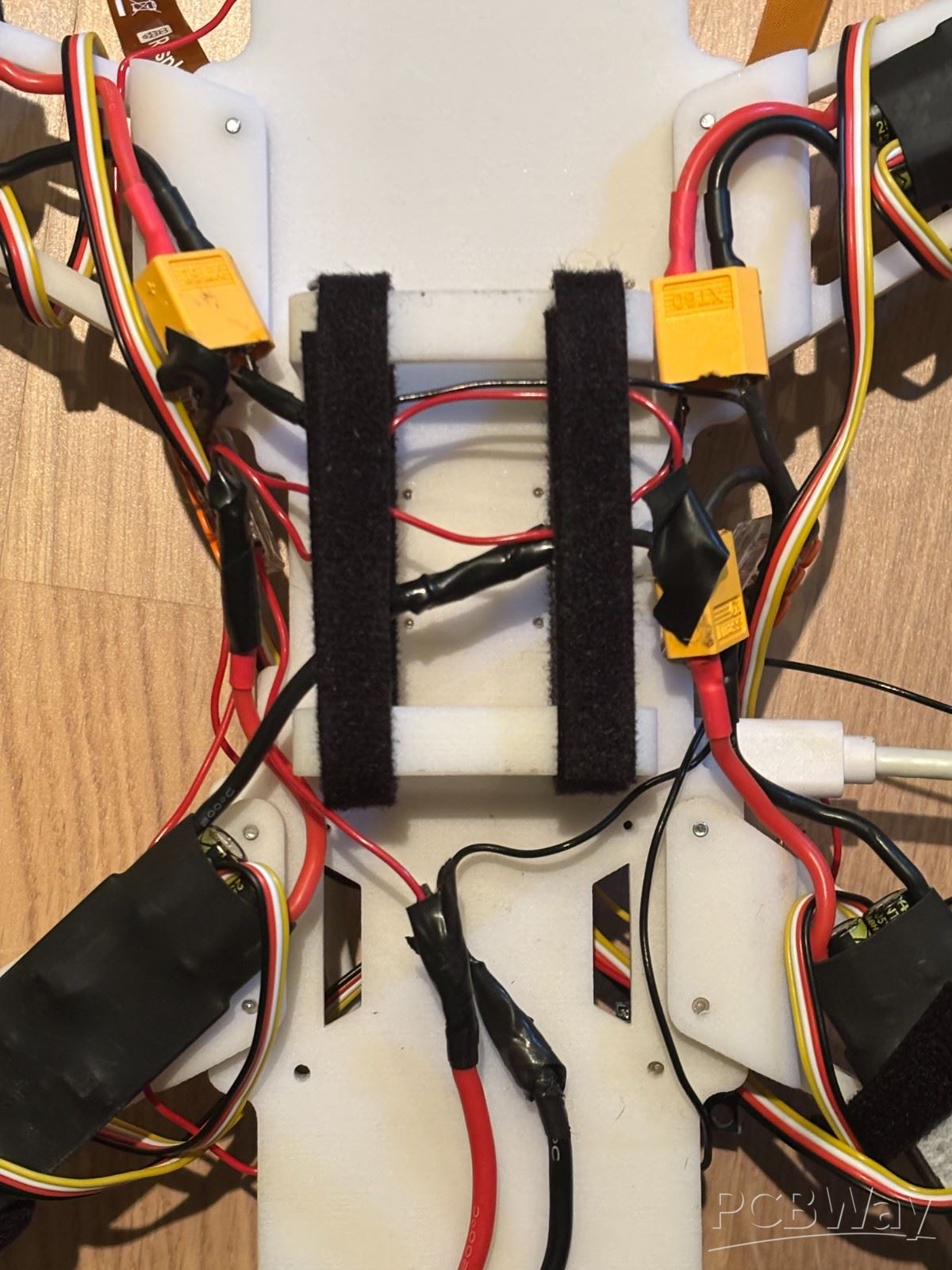

Central chassis for my deadcat drone frame with an onboard camera setup. Needed to be rigid so the camera mounts don't flex mid flight. Nylon PA12, accurate to the millimeter, honestly better than I expected. I added extra margin thinking the material would expand but it didn't need it. Used self tapping screws after enlarging the holes a bit, worked great. Drone flies and stabilizes clean.


Jul 10,2026
