Analoguino (ESP32 + FPAA)

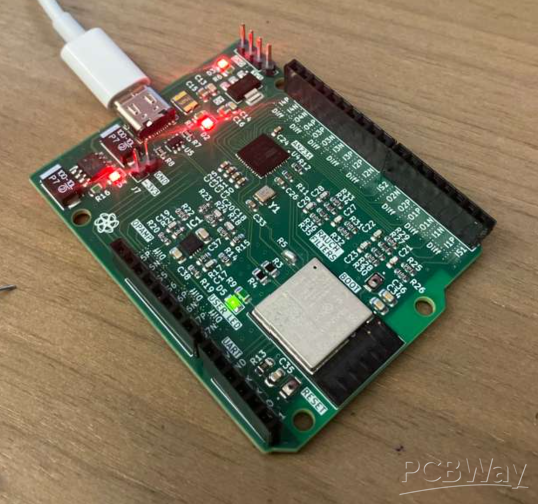

After building FPAA shields for the Arduino Uno and Raspberry PI, it was time to develop a version to interface with an ESP32. The ultimate goal is to create a platform that allows to connect different types of shields on top of this ESP32 + single FPAA PCB board that enables IoT, analog sound design, filtering, and analog computing tests. Thank you PCBWay for enabling this project and for all your support. The quality of the PCB is stellar as always and the stencil is working great too.
