Product Description

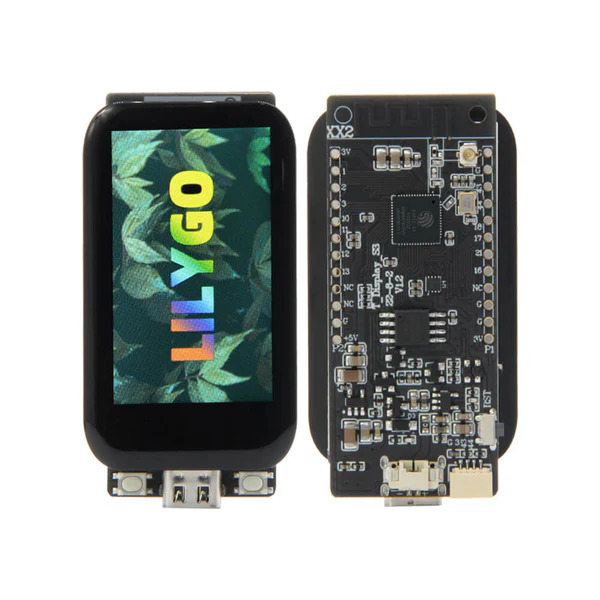

LILYGO T-Display-S3 1.9-inch LCD display development board(Touch Version Non-Soldered Pin)

T-Display-S3 is a development board whose main control chip is ESP32-S3. It is equipped with a 1.9-inch LCD color screen and two programmable buttons. Communication using the I8080 interface Retains the same layout design as T-Display. You can directly use ESP32S3 for USB communication or programming.


Note:

  • Please use USB2.0 (USB A-USB C) cable.
  • Compatible With ST7789.


There are MIDI expansion boards for use with the T-Display S3?

Connect it to headphones or a stereo and playback the simulated sound!

Compatible with all versions of T-Display S3.

[Please note that the package does not include the T-Display S3 device, only the MIDI Board, please select the right version of the T-Display S3 to use with the MIDI Board according to your needs].



Sample Code For Reference [Github]

If you need technical support please check below link to find more details:

https://github.com/Xinyuan-LilyGO/T-Display-S3


What engineers have done with T-Display-S3

Car Dashboard/Controller, Game, Monitors....


T-Display-S3 Introduction

The T-Display series has added a new member.

It comes with the latest ESP32-S3 [Wi-Fi 802.11, BLE 5 + BT mesh].

The screen has also been expanded from the original 1.14 inches to 1.9 inches, and an acrylic plate has been added to fix it.

This will be the second LILYGO model Display with an acrylic plate fixed.

The overall design continues the design of the T-Display series.

1. Size

2. Pin Diagram

basic version

Touch Version

3. More details

Not Solder Version

Solder Version

Touch Version


Only MIDI Board

[Please note that the package does not include the T-Display S3 device, only the MIDI Board, please select the appropriate version of the S3 to use with the MIDI Board according to your needs].
