Product Description

Digital Temperature Controller

Product Name:Digital Temperature Controller

Product model:W1209

Mainboard power supply:DC12V

Temperature control range:- 50℃— +110℃

Temperature control accuracy:0.1℃

Measuring input:NTC10K/B3950

Probe type:Waterproof probe(0.5M)

Output type:Relay output 10A

Refresh frequency:0.5 seconds

Mainboard power consumption:static w35mA / pull-in w65mA

Overall dimensions:48 * 40 * 16mm

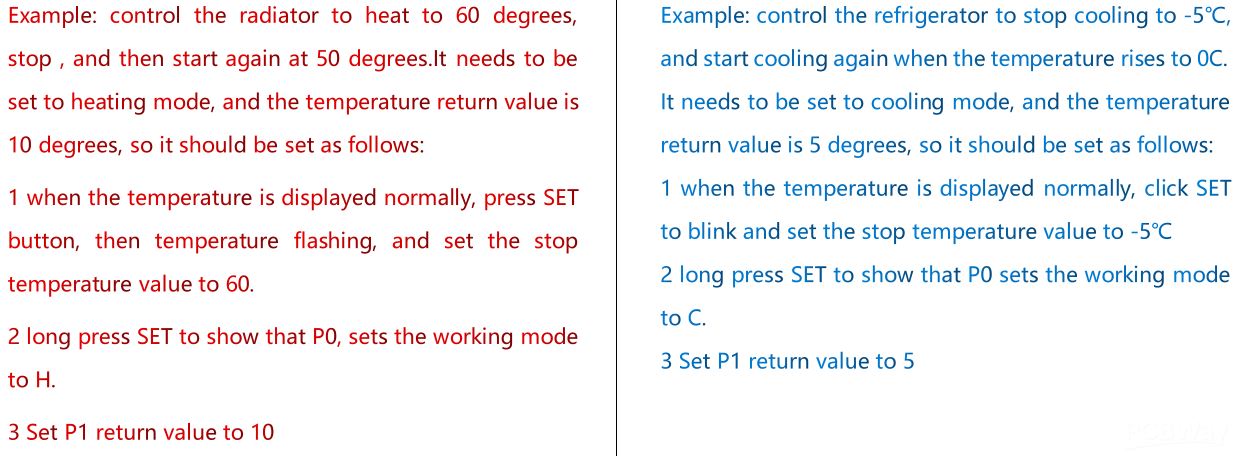

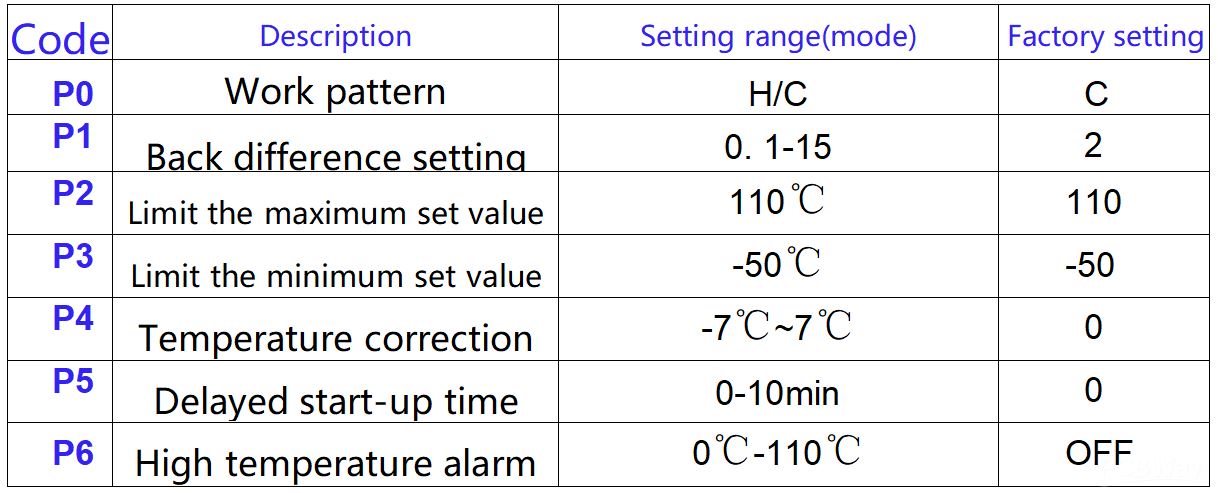

Long press SET for 5 seconds to enter the code parameter table

Press and hold the“+” “-” key at the same time after power-off to display 888 to restore the factory settings.
