Link：ESP32-S3-LCD-1.47B

Onboard TF card slot, 6-Axis IMU, and multiple peripheral interfaces

* for reference only, please refer to the actual display effect

Version Options

ESP32-S3-LCD-1.47B Standard version

Features

ESP32-S3-LCD-1.47B is a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid development of ESP32-S3 HMI applications.

• Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

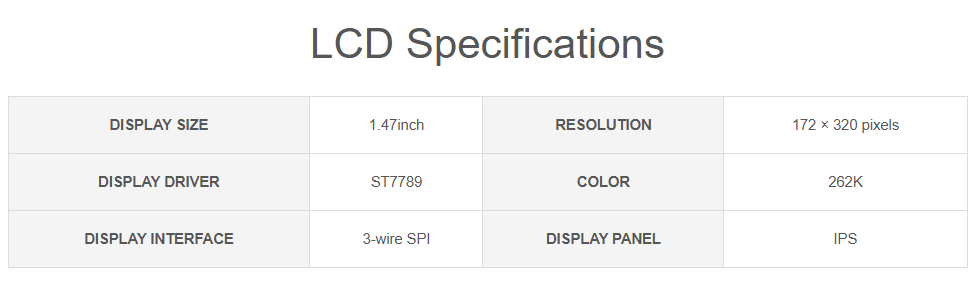

• Onboard 1.47inch LCD display, 172×320 resolution, 262K color
• Adapting multiple IO interfaces, supports full-speed USB standard
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc
• Built-in RGB LED with clear acrylic sandwich panel for cool lighting effects
• Onboard TF card slot for external TF card storage of pictures or files
• Onboard battery charging management module, supports connecting to Lithium battery for power supply (the battery interface is located at the GPIO header)
• Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

Suitable for AIoT applications

Powered by a high-performance 32-bit LX7 Dual-core processor, the main frequency is up to 240 MHz, with Powerful AI Computing Capability & Reliable security

Wi-Fi and BLE 5 support

ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support, its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Application Scenarios
