Programmable 3-channel circuit switch for Arduino/Raspberry Pi/ESP32 etc

Programmable 3-channel circuit switch for Arduino/Raspberry Pi/ESP32 or other boards that supprot digital output signal.

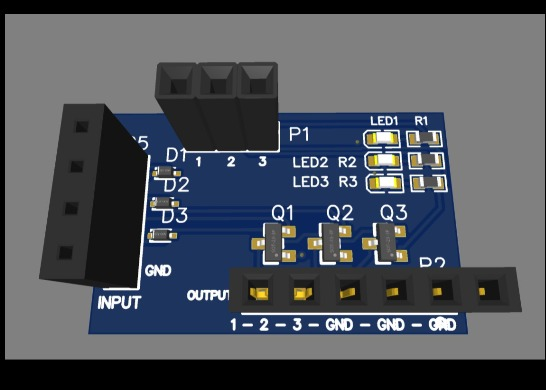

Just plug in your power supply and output pins and signal pins onto this compact board of only 28mm*18mm dimension. The board is powered by 3 n-type MOSFET which should fulfill basic needs for small circuits. Check the BOM and official datasheet for more specs.

To close (activate) a circuit, connect a signal pin to a digital pin on your board and set the output to HIGH. To open a circuit, set the digital output to LOW.

Schematic and Layout

Schematic_PDF

Schematic_nmos_upload_2024-03-29.pdf
