nRF5340 minimal board design PCB assembly

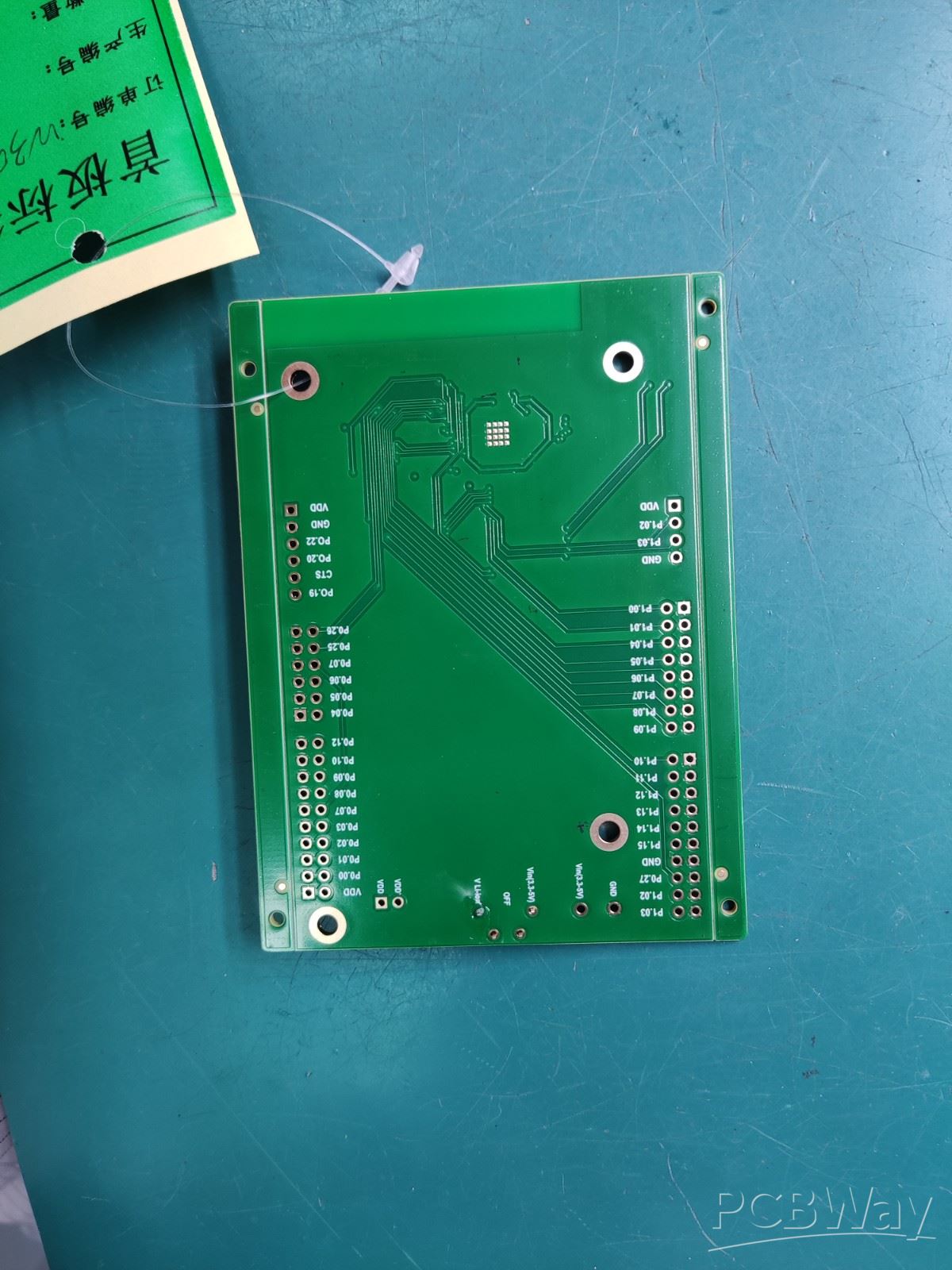

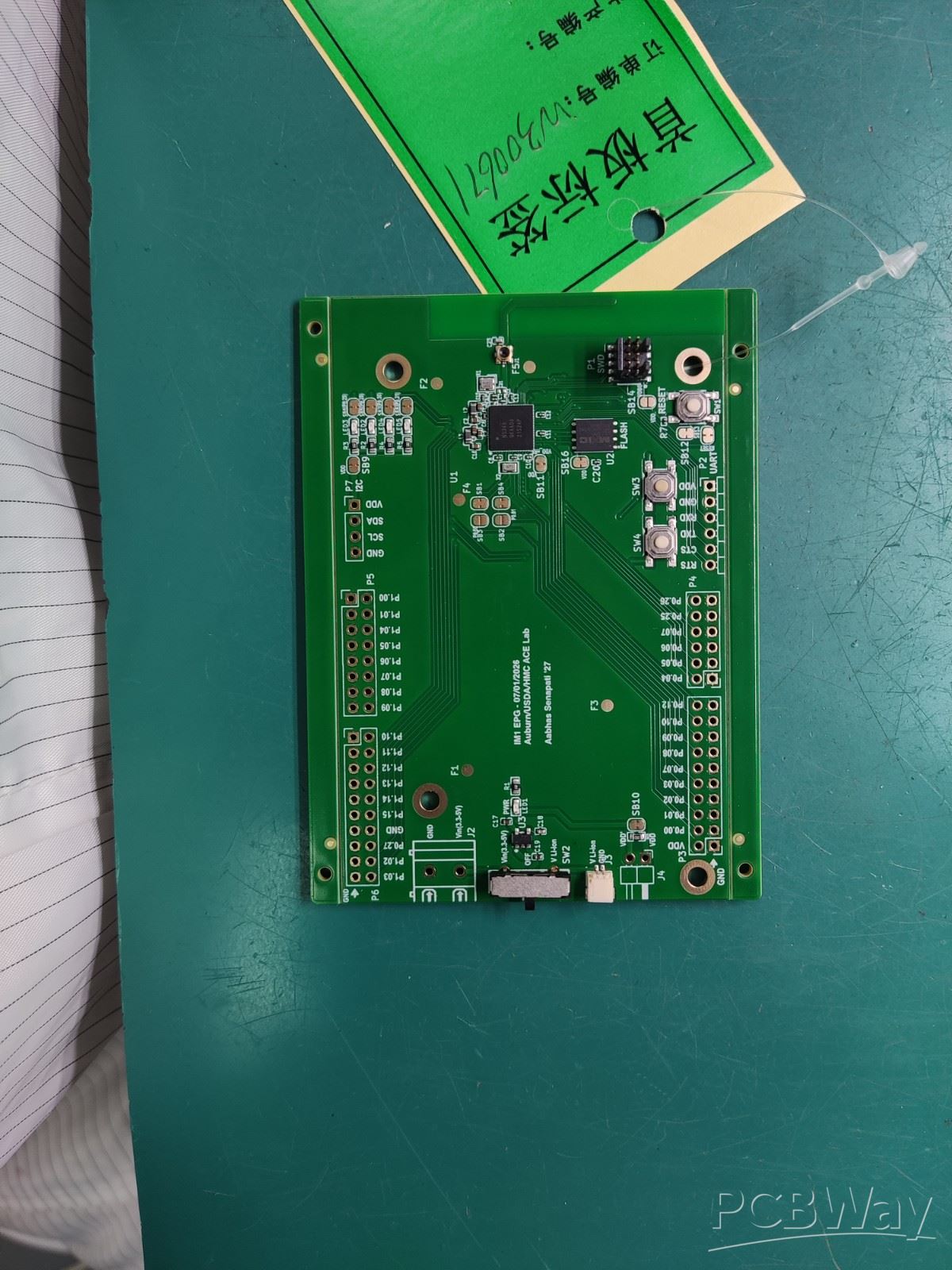

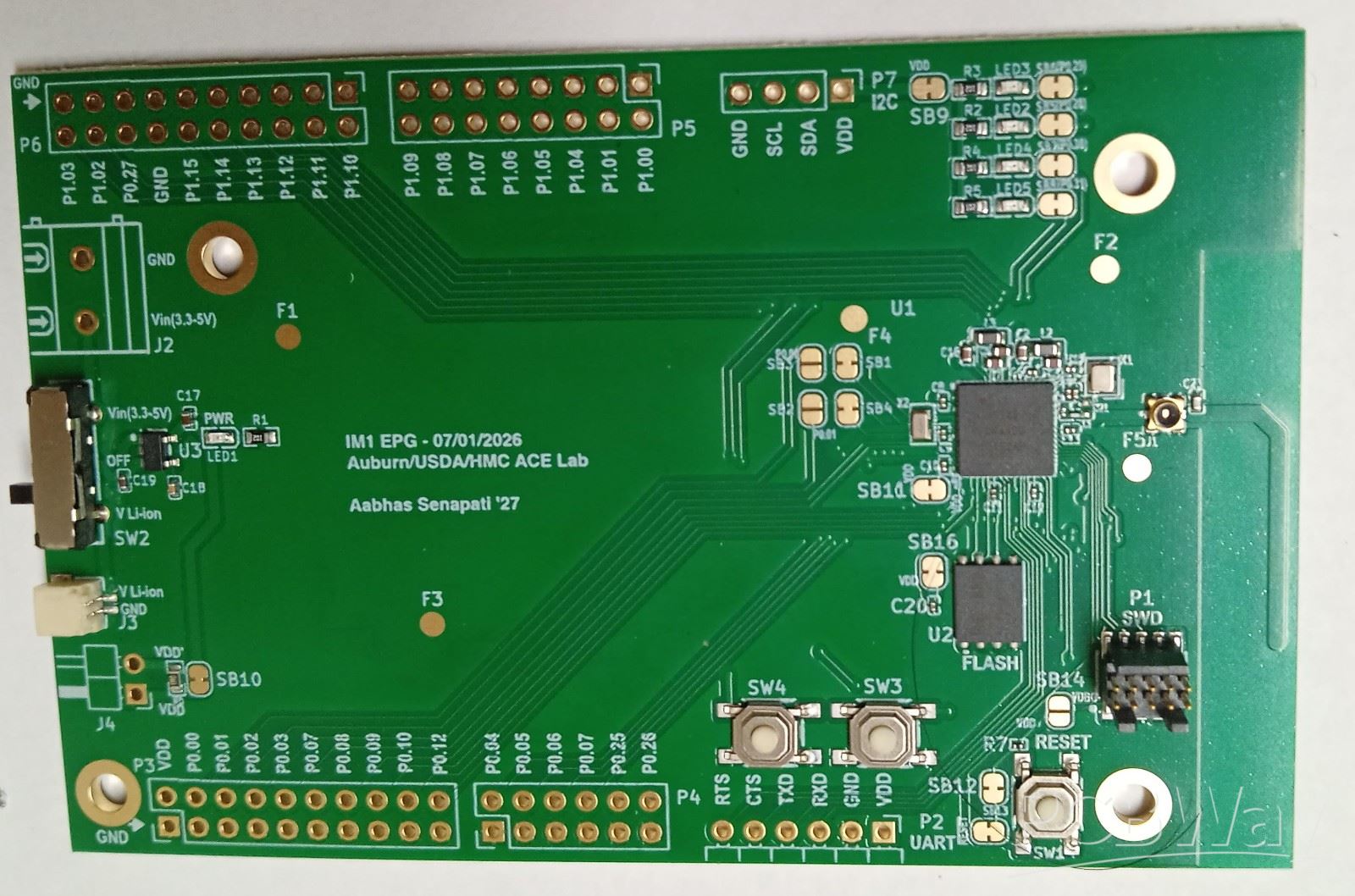

I designed a miniature version of the nRF5340 DK board using an nRF5340 SoC. This required assembly of critical components of the smallest sizes, including 0201 resistors and caps, and this meant a good assembly service, along with a BGA SoC assembly that requires precise assembly; I am extremely satisfied with the quality of assembly provided by PCBWay. Also, I really appreciate the turnkey service for sourcing components, which is very convenient and helpful, unlike other manufacturing houses that don't offer component sourcing service in such a streamlined way with very reasonable pricing. The assembly quotation for components and the service team reviewing the BOM are also very helpful and are among the reasons that make PCBWay stand out from other manufacturing houses. I really appreciated the human feedback in this whole process and highly recommend others to use their service. Overall, the customer support was really good.
