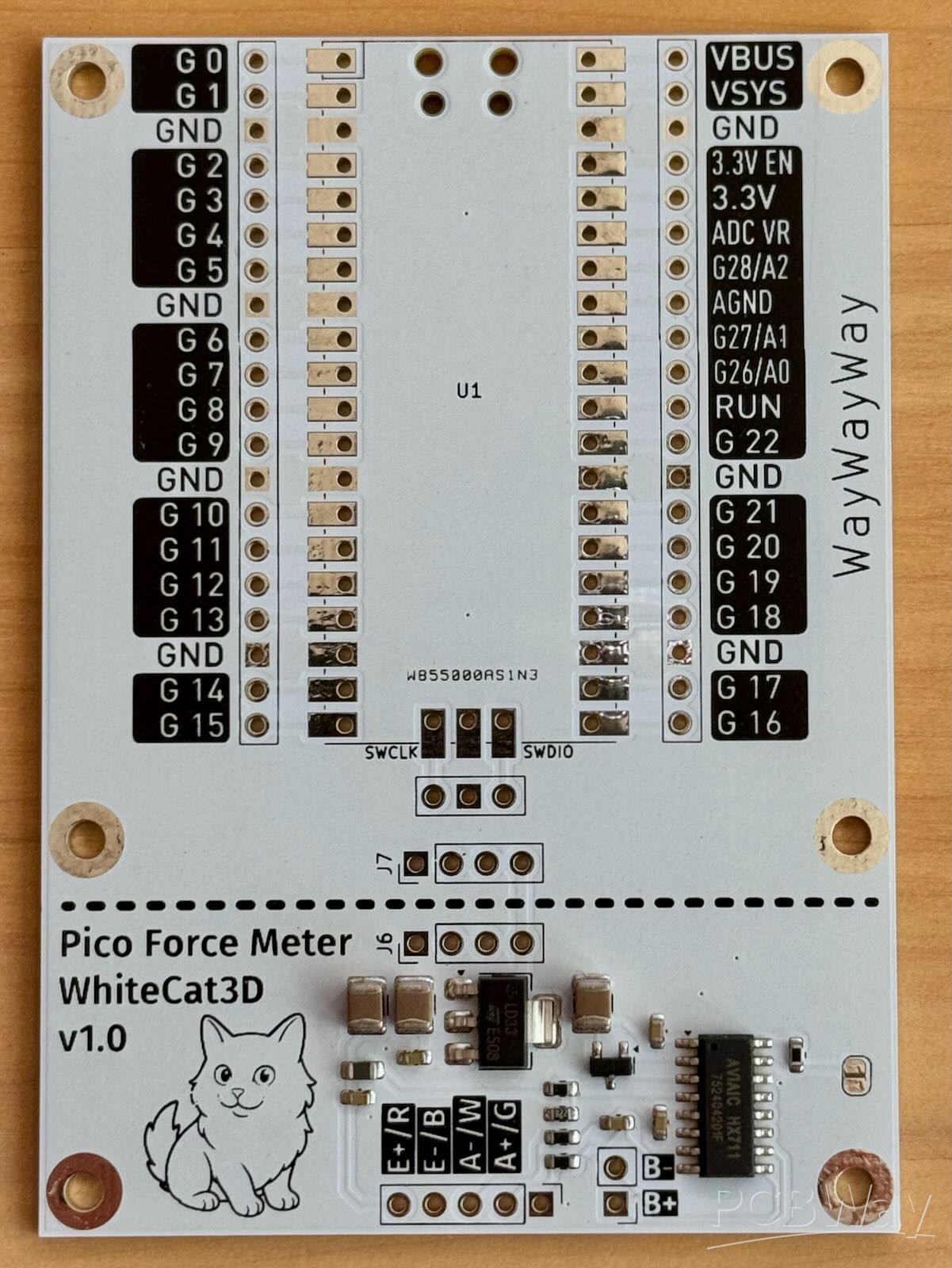

WhiteCat3D force meter board for Raspberry Pi Pico

Assembly on the SMT force meter parts (on bottom) was perfect. I did the not-so-great soldering on the Pi Pico module on the top part. The boards work perfectly! Absolutely no bring-up issues.
