VPC1-CC-CB-SMD_ASSY

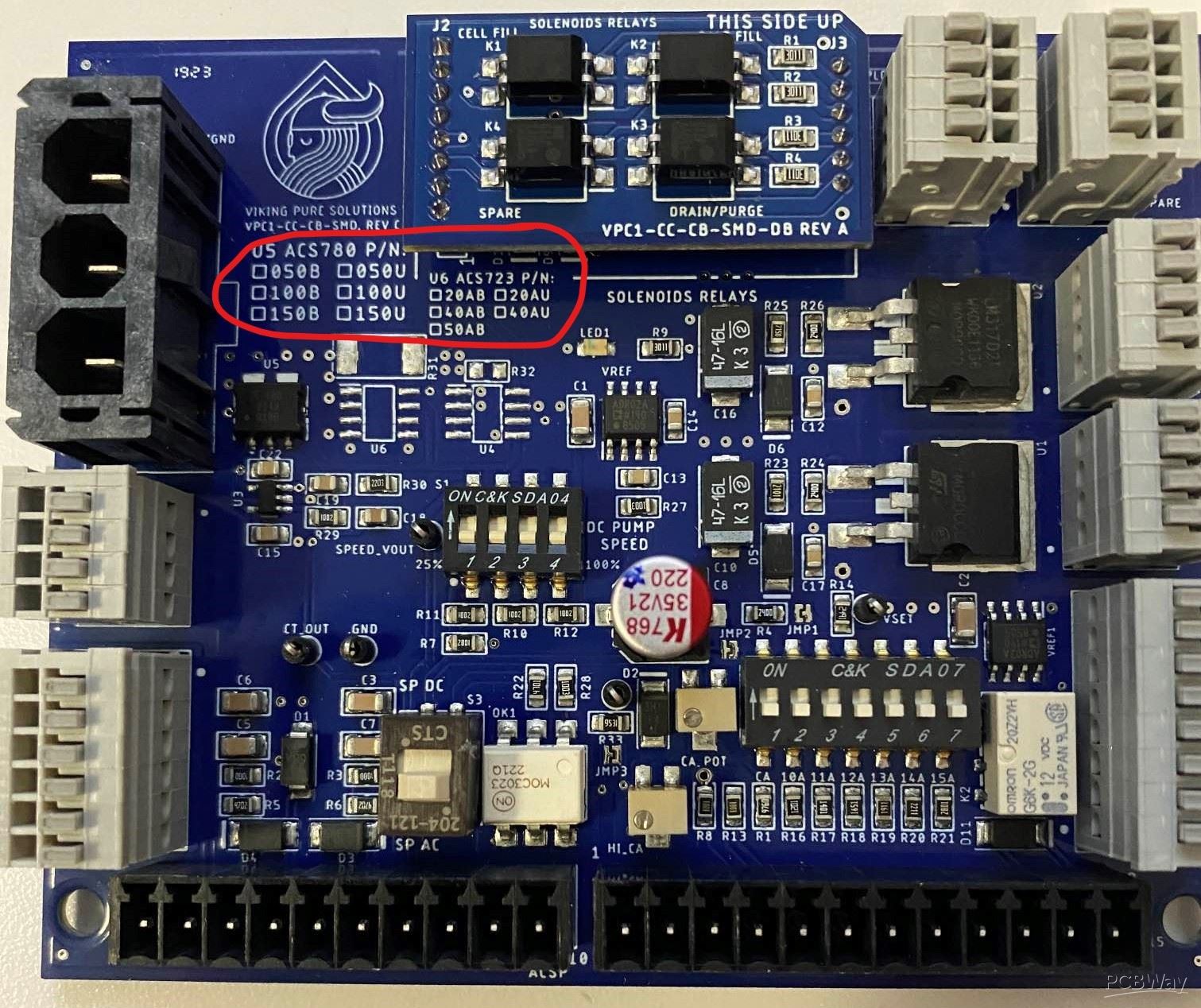

Boards were good, however the part marking for U5 or U6 was missing. The assembly instructions were shown in assembly drawing with red callouts in sheet 8. See pictures below for drawing and boards received. If we submit reorder in future, how do we ensure the parts are correctly marked? Please let us know best way to show this assembly step.



Jun 28,2023
