UPDI Programmer ( No HV)

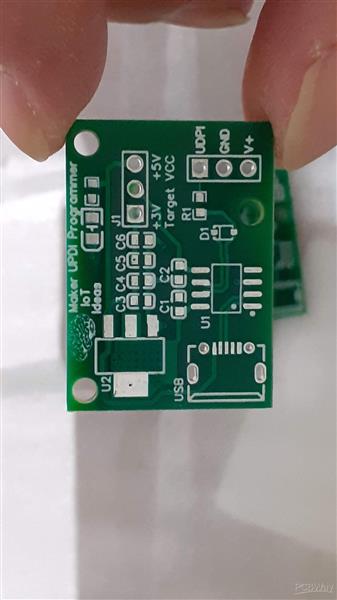

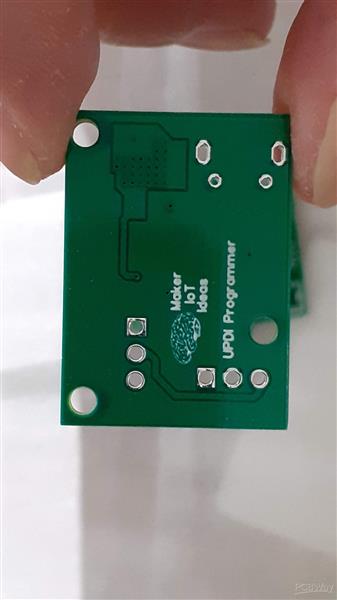

A small UPDI programmer with very few parts. As part of my attempt to find a replacement for the ATMEGA328P, new technology programmers are needed.. This is a simple circuit that I found online, and want to try it out to see how it performs. The PCB was well-made and true to my design. Thank you





Feb 13,2023
91 viewsReport item
