Top Part of Display Stand

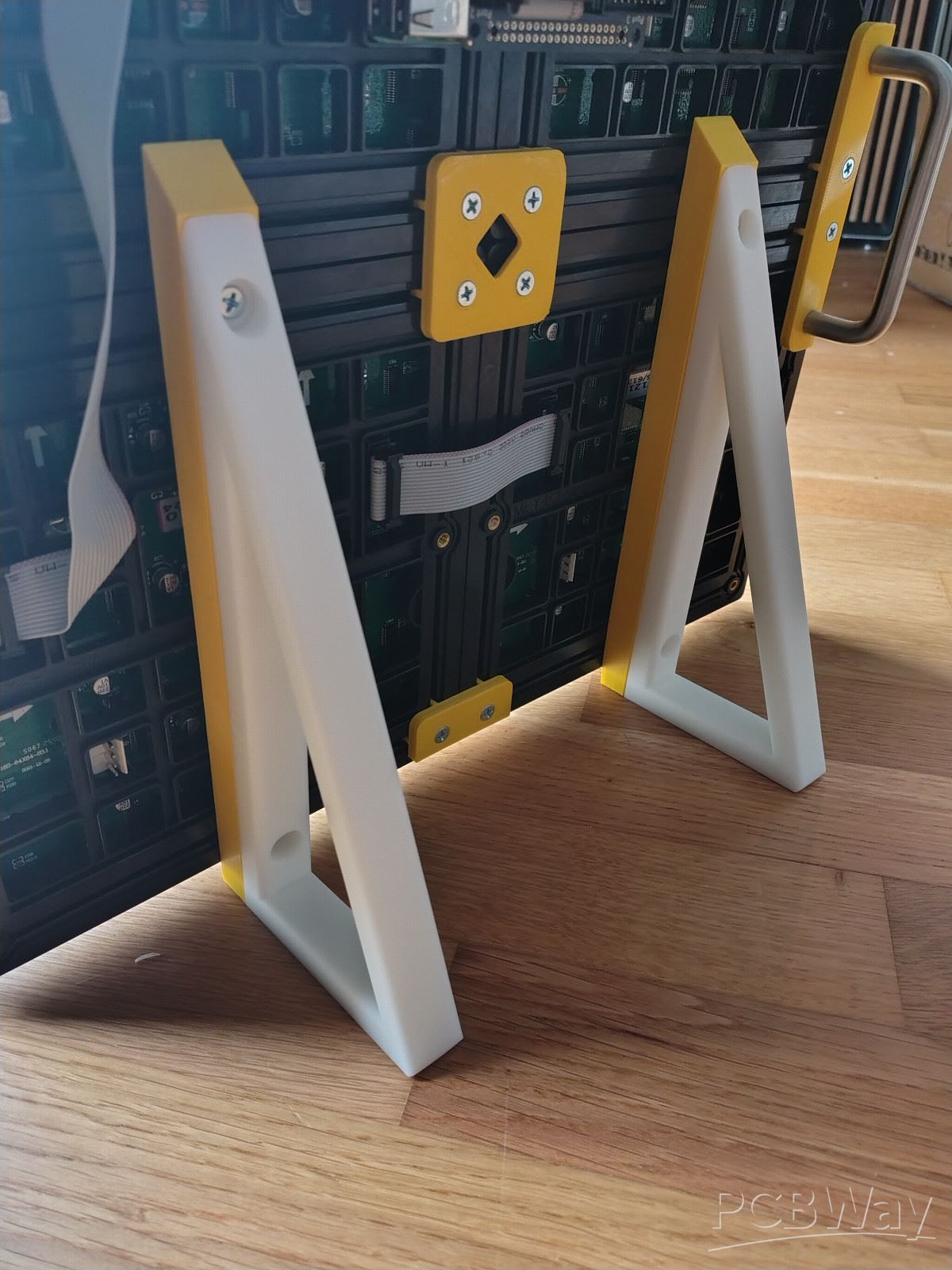

2 Part design to be able to screw this into some LED Matrix panels while able to avoid larger holes in the structure. Unfortunately the Angle of Attack I designed into this means that while being stable in the direction I focused on the total contraption isn't top heavy enough to be stable in the other. But this is a failure of the design and not manufacture.


Sep 04,2026
28 viewsReport item
