Tim's Digital Calliper Interface

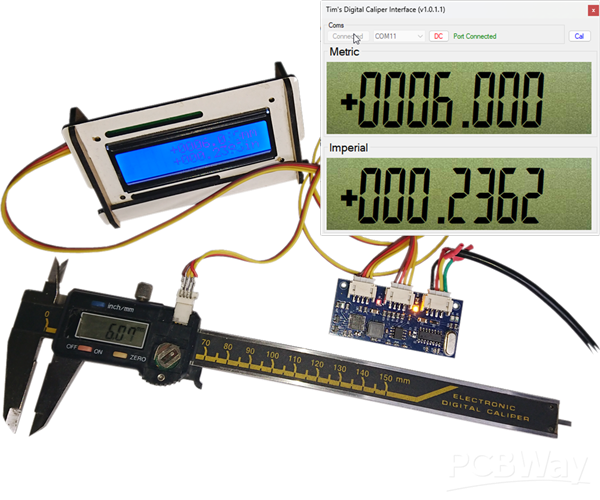

This PCB from PCBWay is just as I designed it. I like to populate my PCBs my self and the quality of the silk screen and solder mask make fitting the SMD easy to position and solder. This project is for connecting a Chinese made calliper that has a data socket to the PC. The Interface allows you to see the value displayed on you Calliper in an application I wrote for the PC, which can be installed form Microsoft Store. It connects via a USB port on your PC.



Sep 25,2025
