Telephone Rotary Dial Door Lock

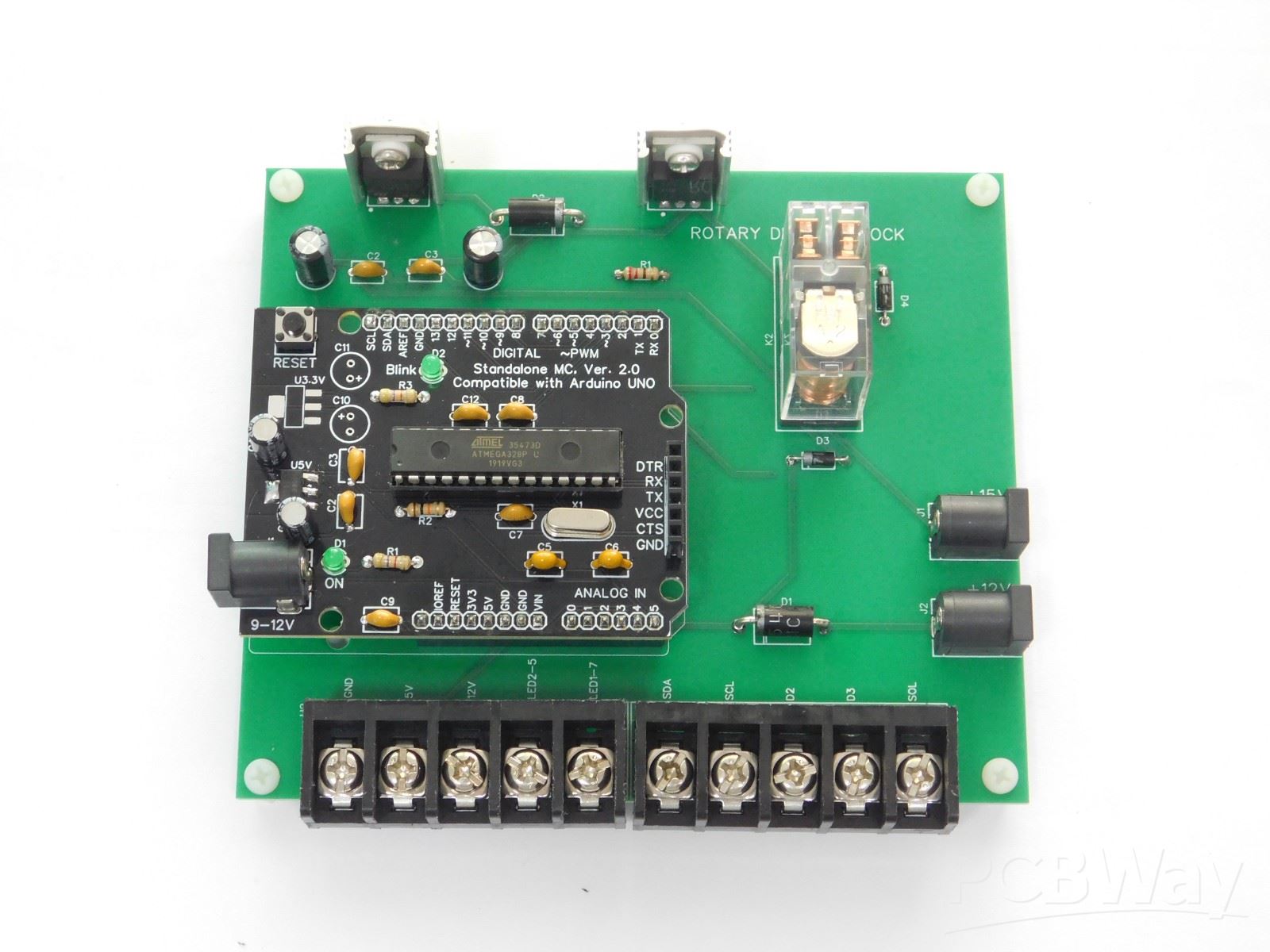

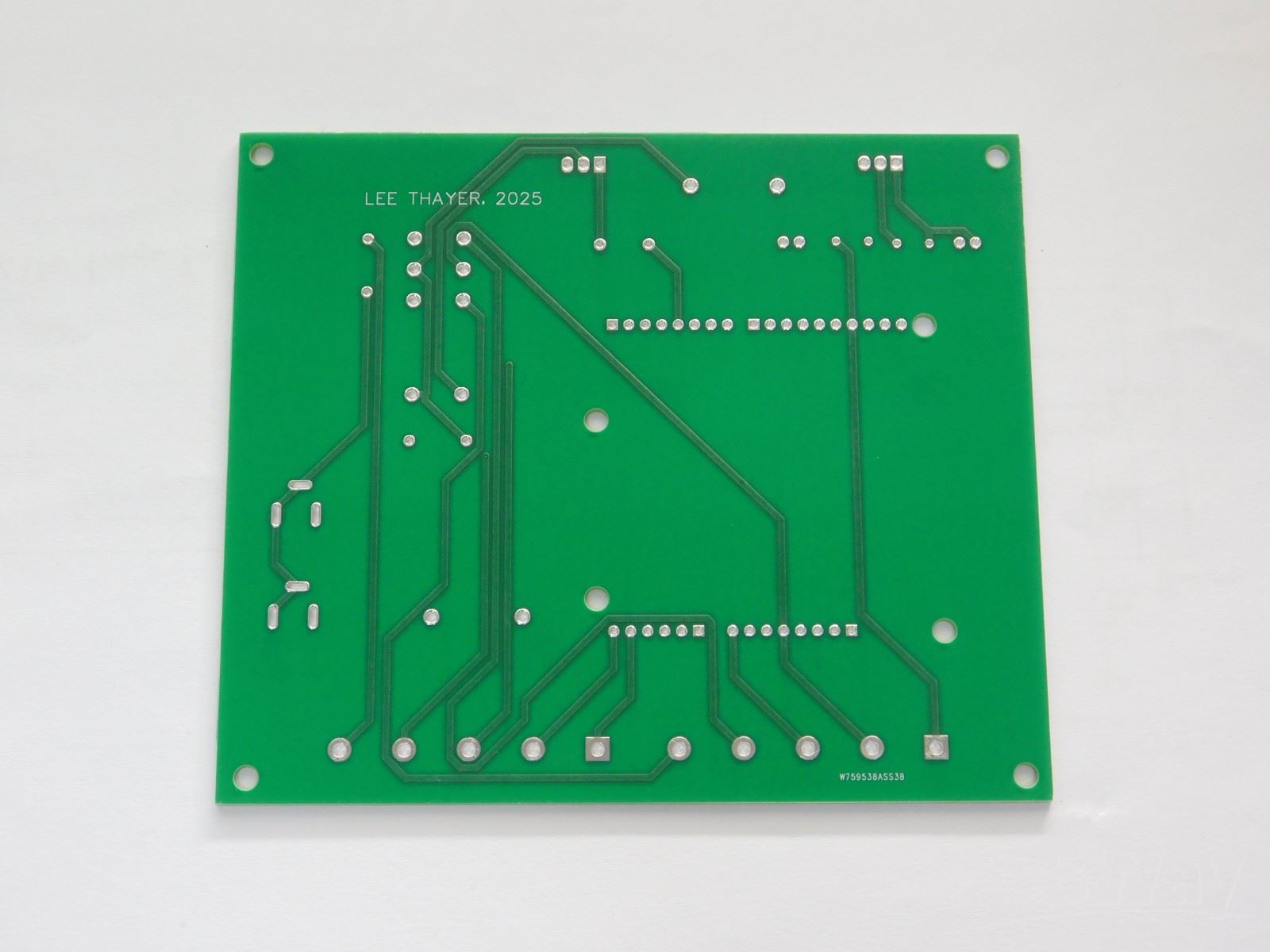

I used a telephone rotary dial with the numbers counted on an Arduino and displayed and displayed on an LCD module, which opens a relay to unlock the door when the correct code is entered. This board is the control board to which a Arduino UNO is mounted. The boards were received in perfect condition, packaging has always been 100% perfect with all my orders through PCBWay. Silkscreen was clear and accurate, overall, perfect PCBs as I specified. I cannot recommend PCBWay enough for PCB fabrication and professional service.





Feb 03,2026
