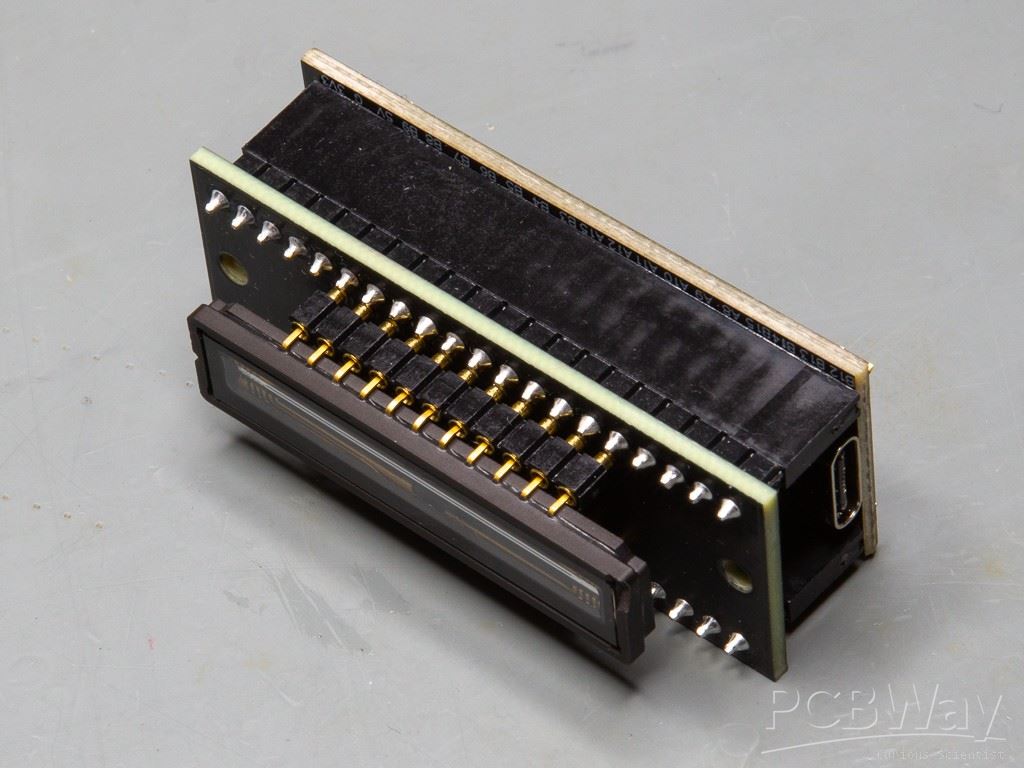

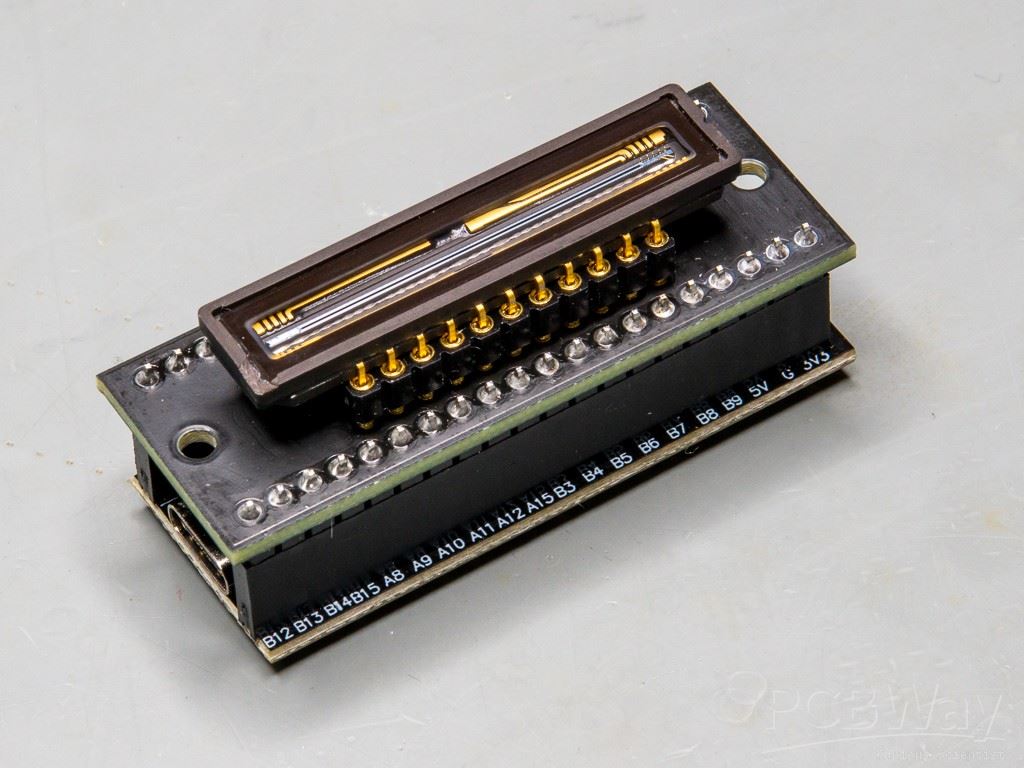

TCD1304 breakout board for the STM32F401 microcontroller

I redesigned my earlier board with some improvements and updates, and got it manufactured again. The matte black PCB turned out great, which is particularly important for this design as it is incorporated in optical systems where stray reflections are not welcome. The tolerances of the board are well-respected. The boards were manufactured quickly and shipped fast.




Jul 08,2025
