Switch Accessible Spinner

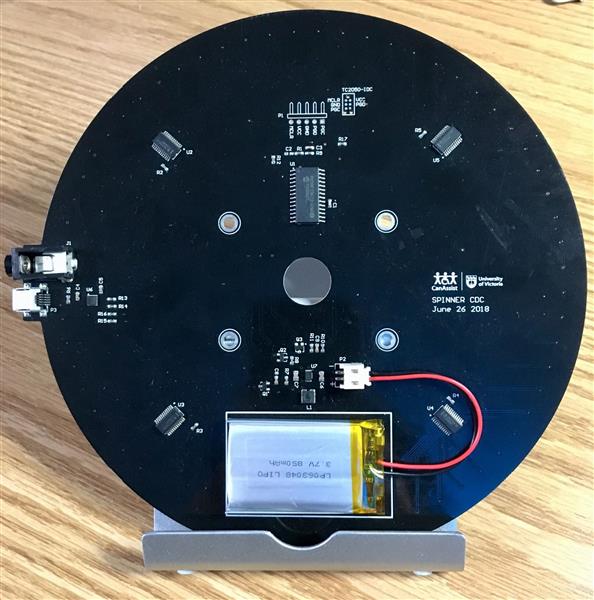

This Assembly was flawless. PCB Way ordered additional components and a test battery to build a test rig to ensure that all 50 Units were working 100%.We were also able to send a .hex file and have the onboard micro controllers pre-programmed. This way they were all working straight out of the box!! Also the turn around time was exceptional considering this PCB was submitted at the height of the COVID-19. Thank you PCB Way for all of the hard work that you do! This project is a USB chargable, Switch Accessible spinner board for folks with physical and cognitive challenges. It lights a series of LED's around in a circle, and works with various overlays such as images of dice so that individuals can participate in board games and other choice making activities.



Jun 06,2020
