Standalone Arduino UNO Ver. 2

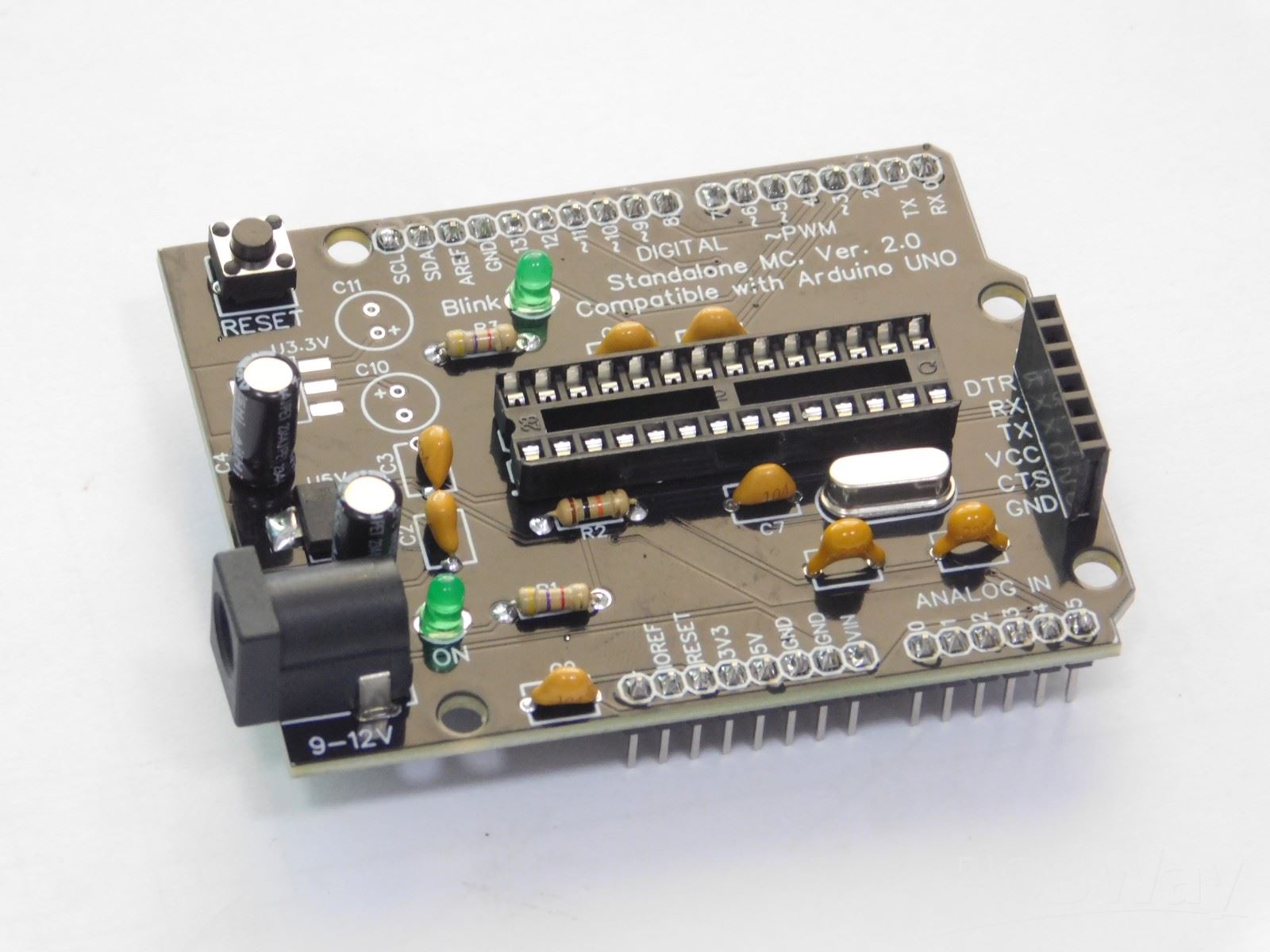

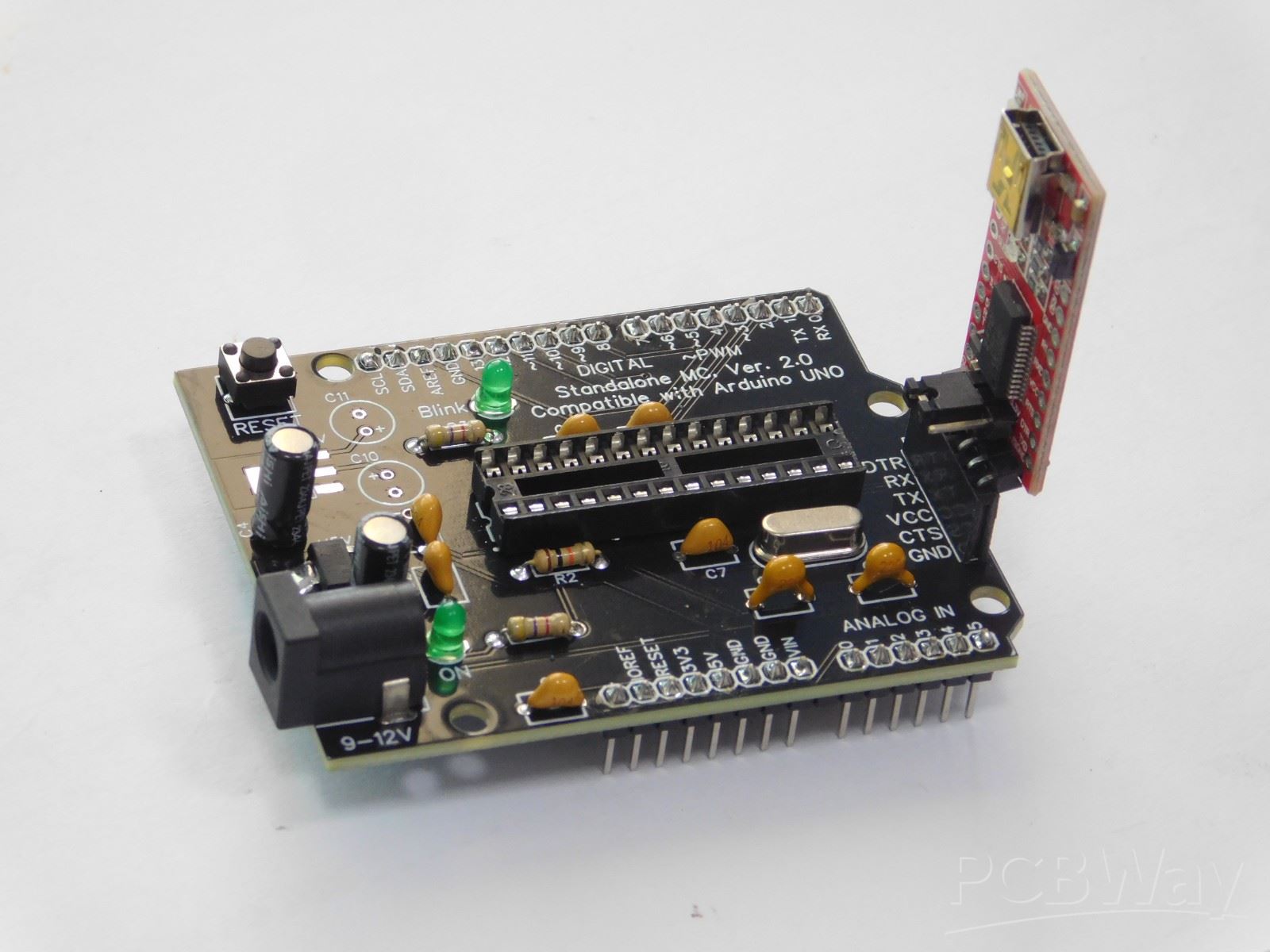

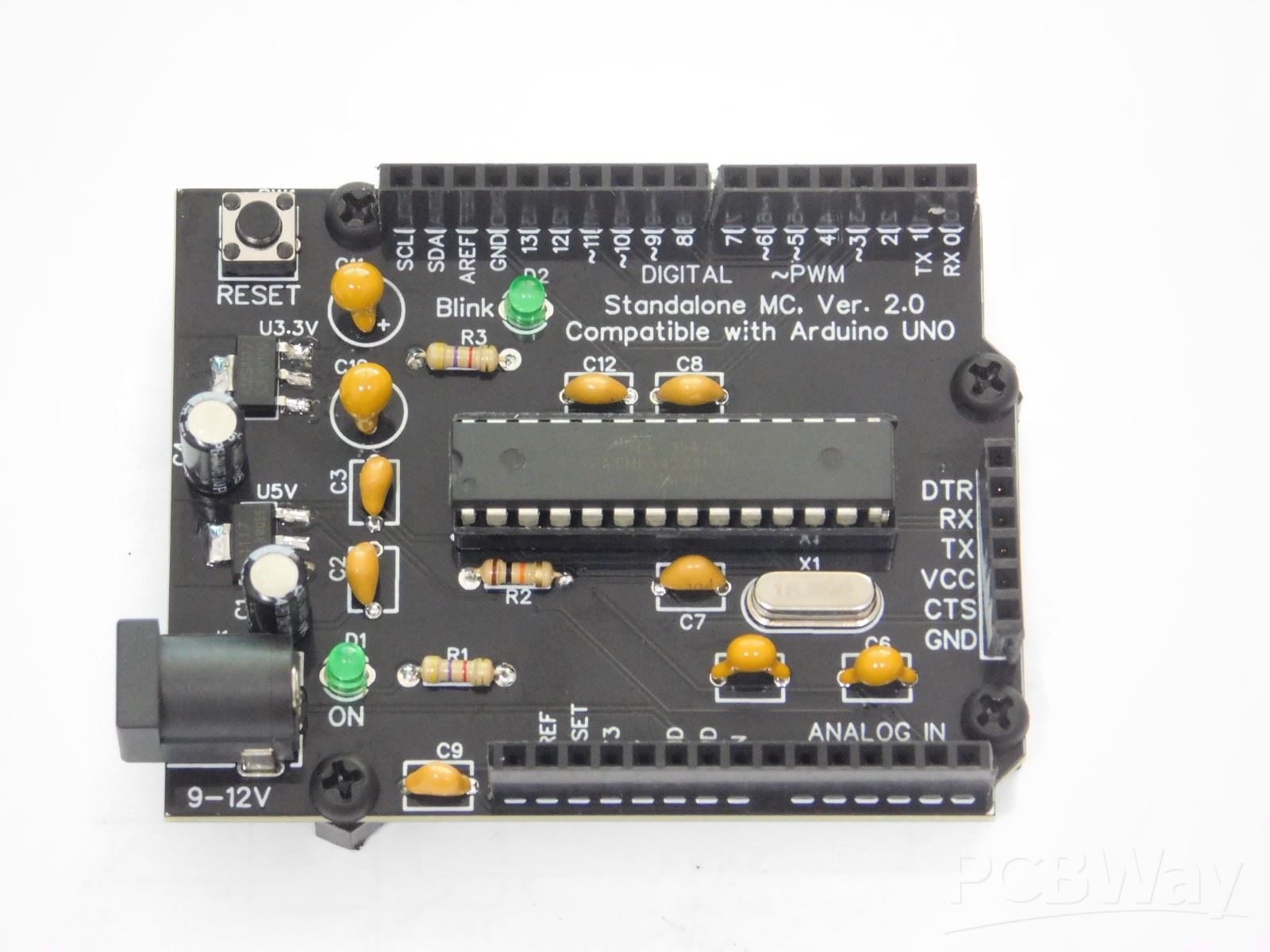

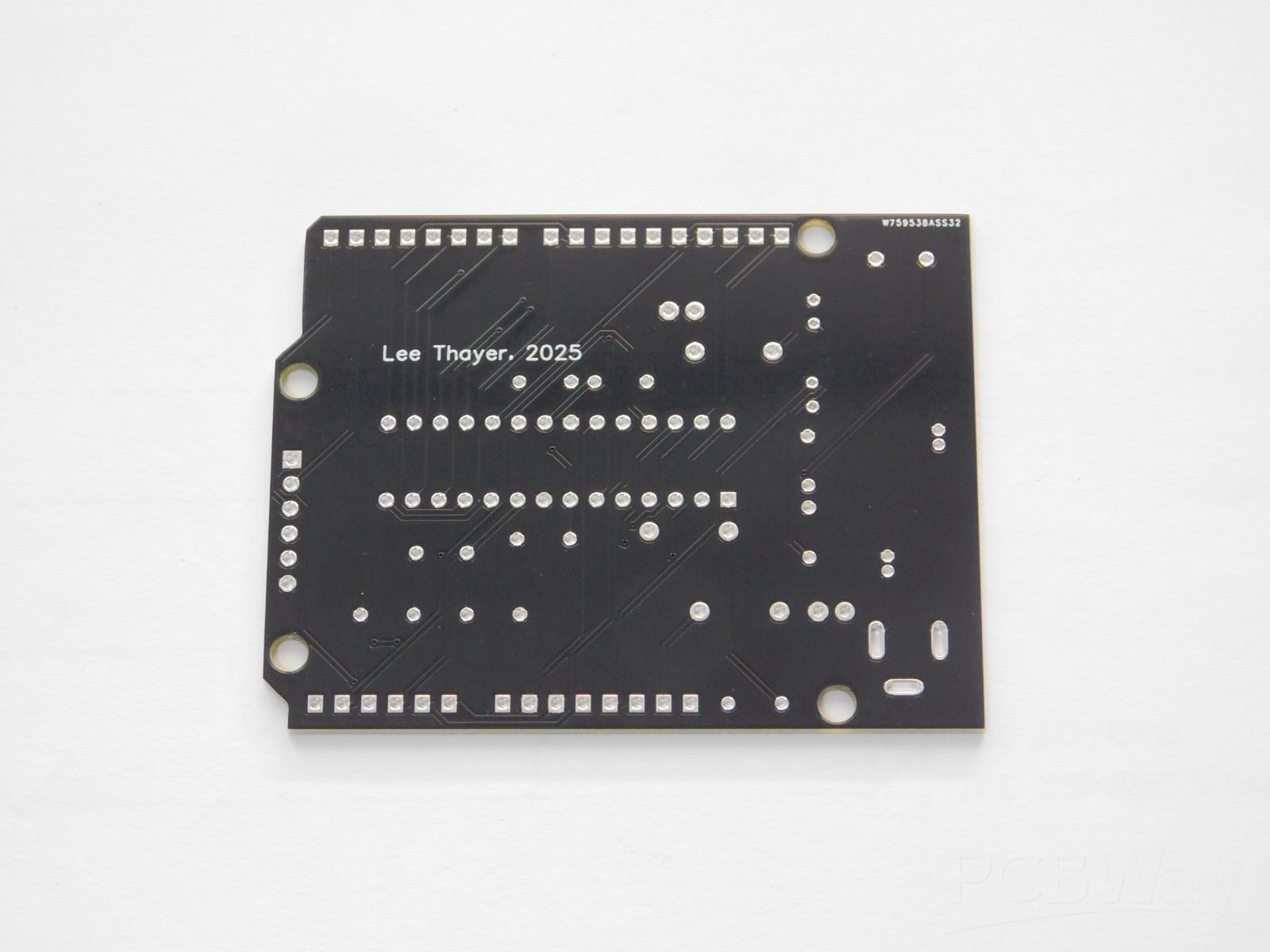

This version of my Arduino clone has a female header to accept a USB to Serial module for uploading sketches. I made this board to use headers on the top or headers on the bottom so I can plug the board into another project. Once again, I received quality boards from PCBWay, they are manufactured to high quality, and the silkscreen is perfect. I have had a number of boards produced by PCBWay and all orders have been 100% quality and manufactured in a timely fashion, with most orders produced in 24 hours or less. PCBWay will be the only manufacturer I use, and they are highly recommended.






Dec 23,2025
