Small hobby PCB, double sided

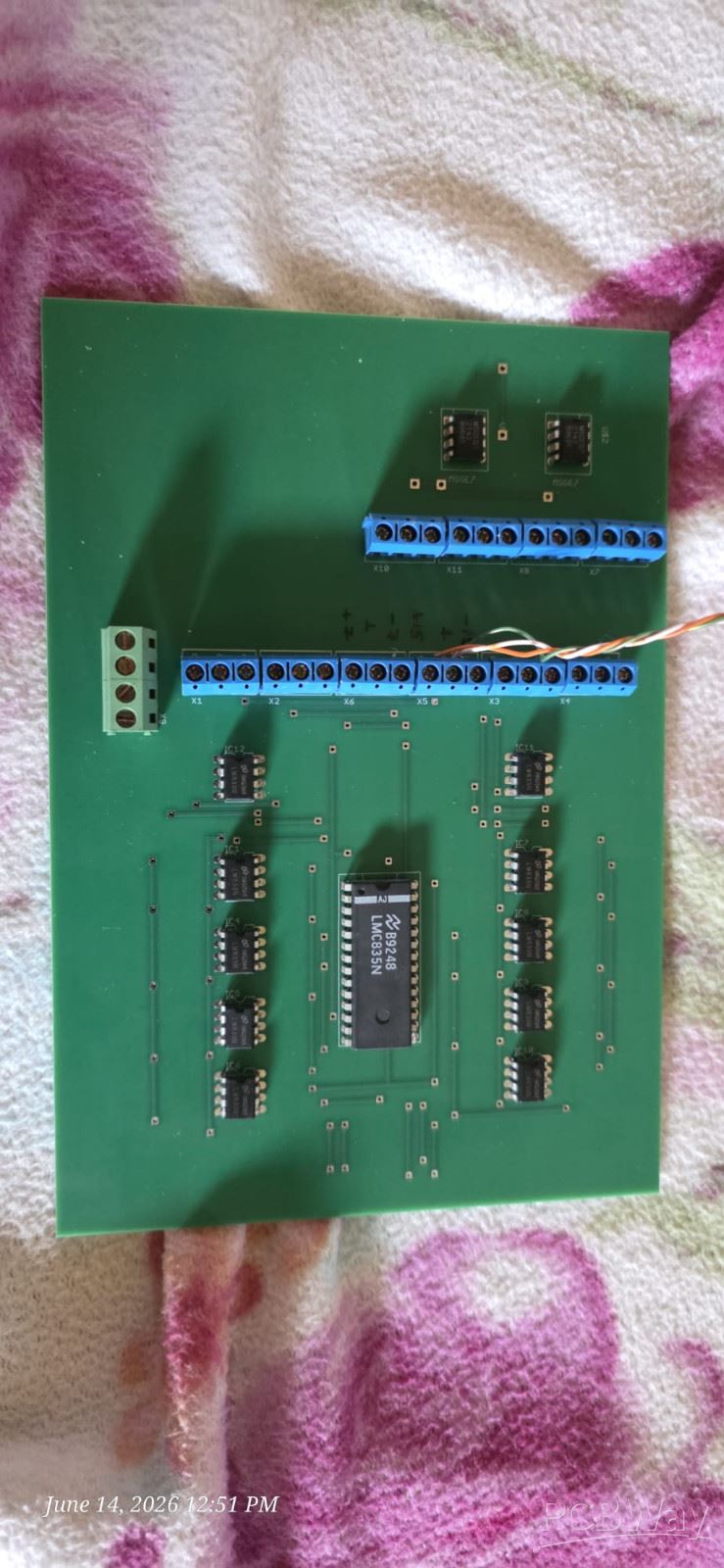

I took the courage to build a small PCB, double sided, for a hobby project of mine. Usually I manufactured this kind of PCBs at home, using primitive manufacturing processes, resulting in all kind of situations (tracks with hairline fractures, lack of rivets in vias, needing painful soldering on both sides, uneven etch of the pads etc etc). The PCB I got from PCBWay came back with a very professional aspect, easy to work with and very well processed. I used to write info like VCC, GND, IN, OUT etc directly using the copper. Making this PCB showed me the importance of the silkscreen: using it, the info is much more visible and clearer. I will most certainly make more PCBs this way, the end results are clearly much better than before. Keep up the good work and always improve!



Jun 14,2026
