Side Cheese Plate has a few issues.

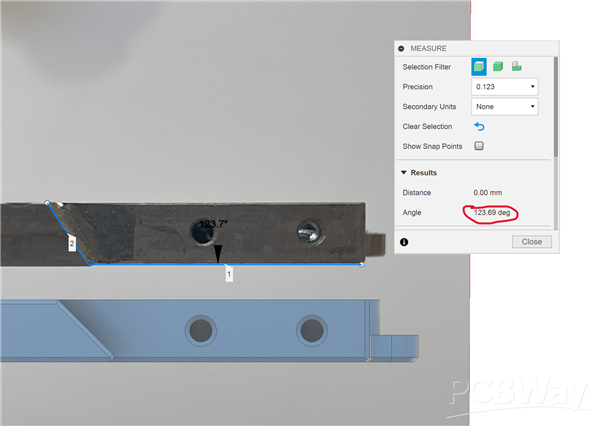

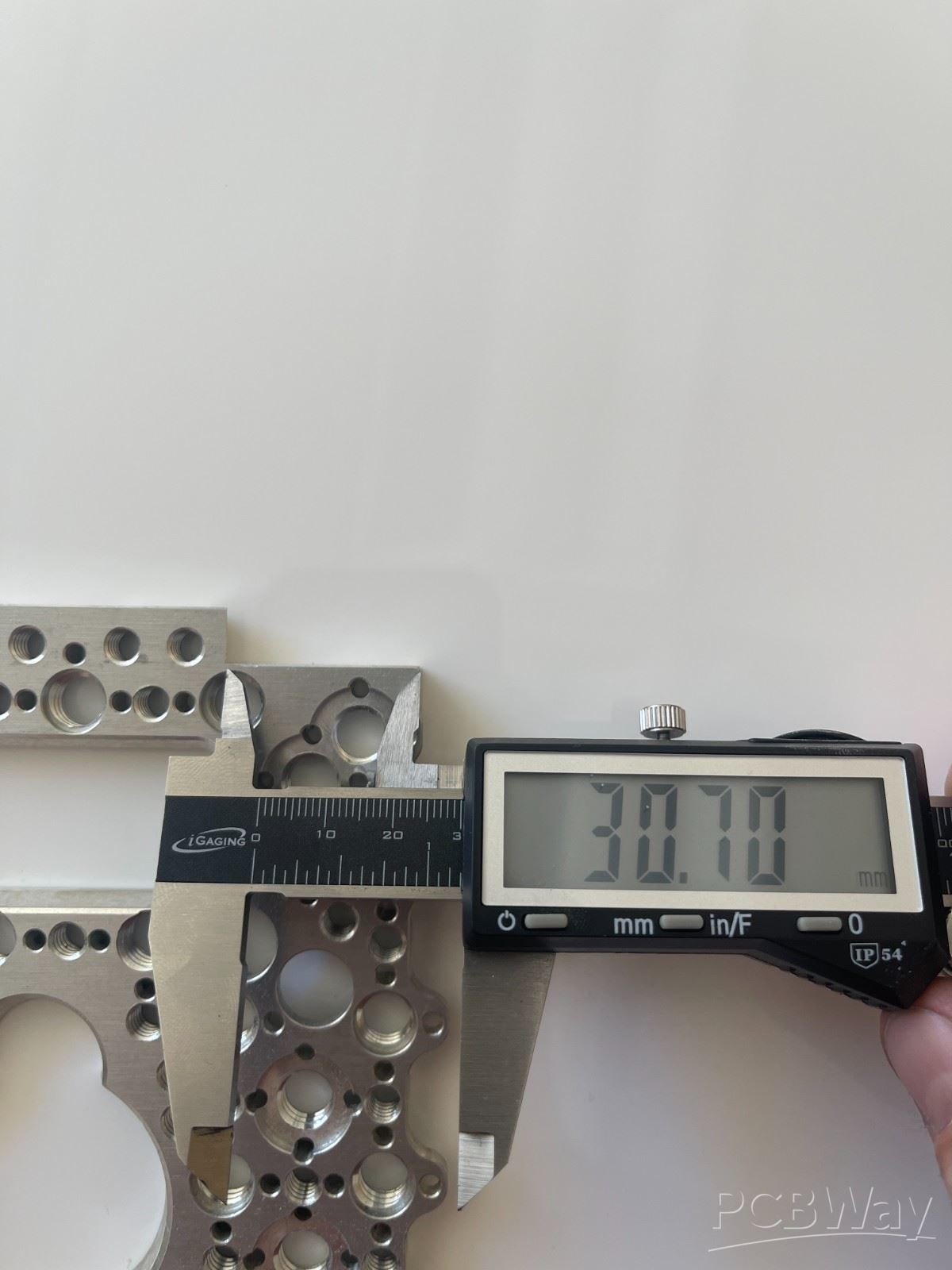

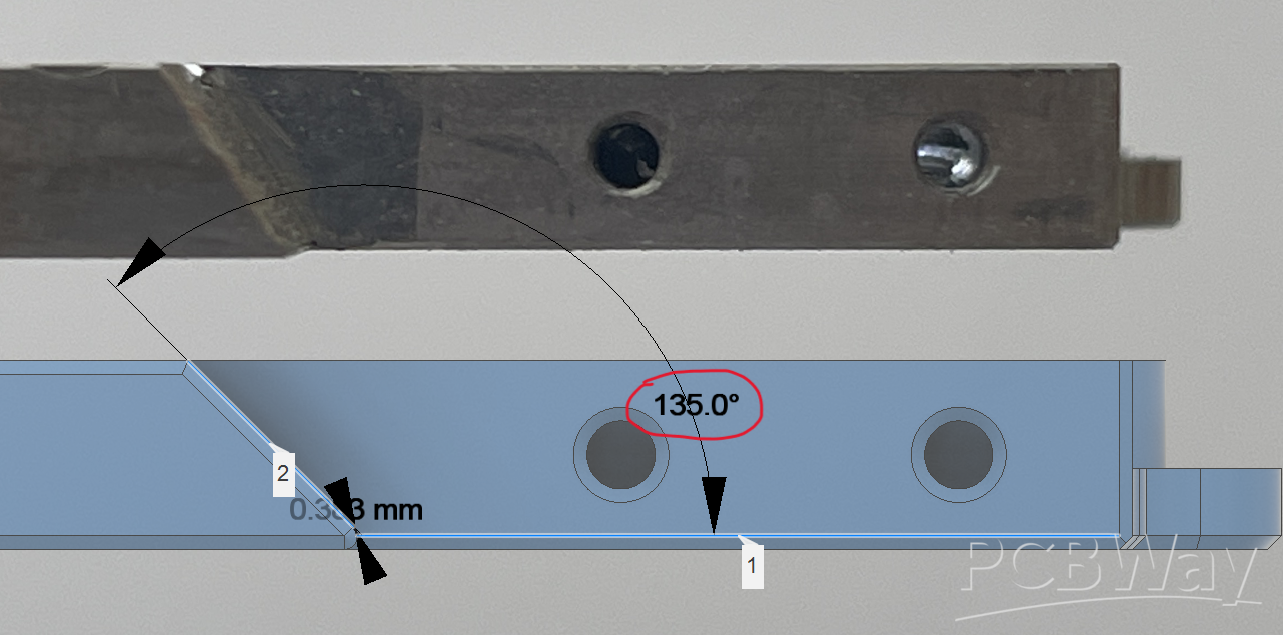

This part looked fairly good overall. The part fit as expected, however, there was an issue with one portion of the part. You will see in the attached photos how this angled portion of the design was cut at a steeper angle than was specified. due to this, you can see how the dimensions of the part do not match the design file. We are hoping that we can resolve this problem for future orders of this part.





Oct 18,2023
29 viewsReport item
