STM32H750 lcd board

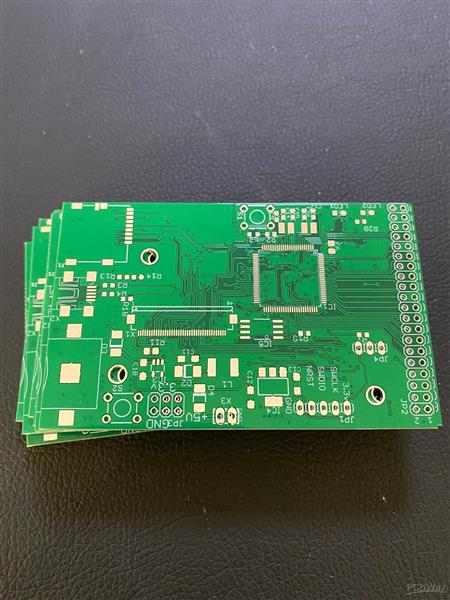

STM32h750 pcb version II. 85x54 mm size. 16 bit rgb lcd with ncp1406 led driver. usb and sdmmc socket. on board qspi flash up to 256 mbit. good product and good job by PCBWAY.




Jan 24,2021
