SCI-bus Logic Inverter V1.00

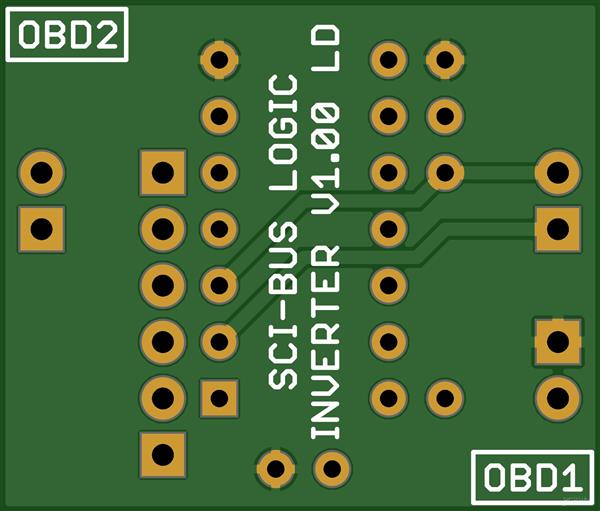

This small PCB is used to invert UART-signals that pre-1996 Chrysler/Dodge/Jeep vehicles used for diagnostics. To be used with Engine Connector V1.00. The inverter functionality can be enabled/disabled by the jumpers.







Nov 21,2019
842 viewsReport item
