Rotary Switch

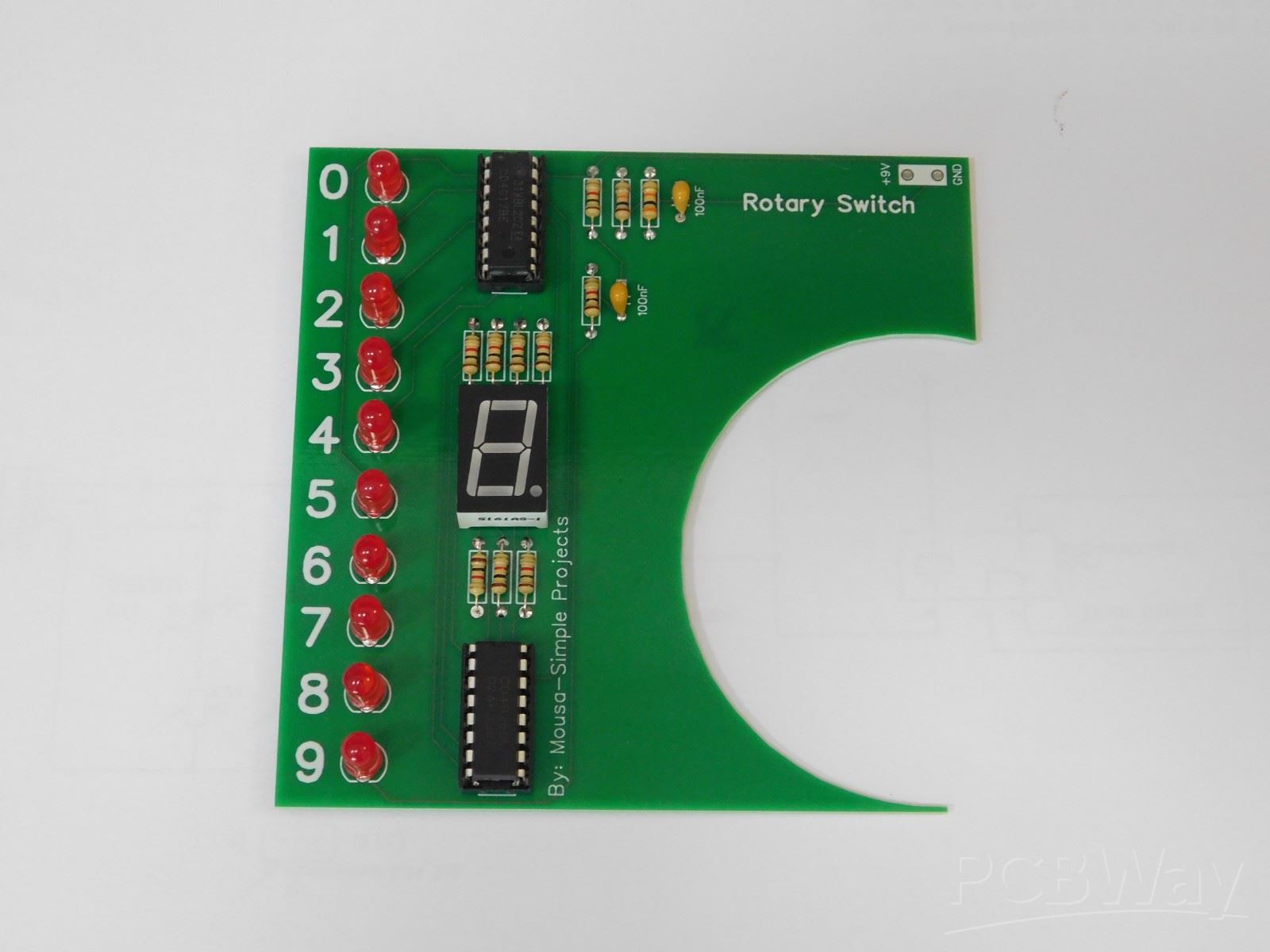

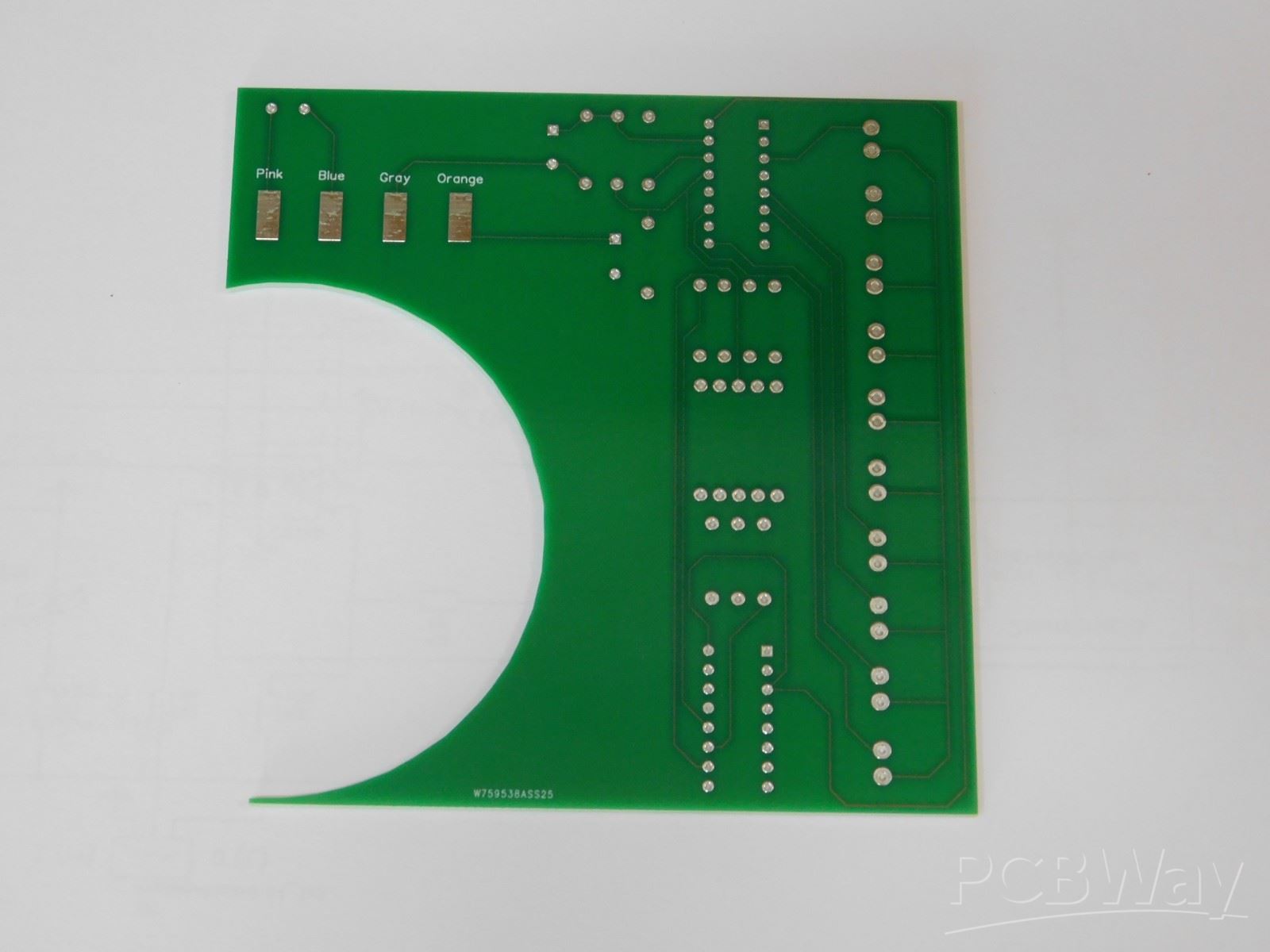

This PCB is used to verify and further tinker/research using a telephone rotary dial switch. The PCB was shared by another maker. Clear silkscreen, very easy to assemble board, I am in the process of getting a rotary switch to test this out and look forward to using a rotary switch in some of my future projects.
